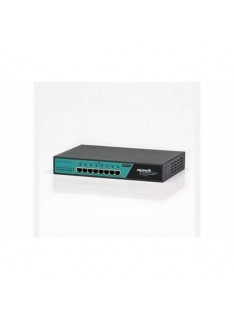

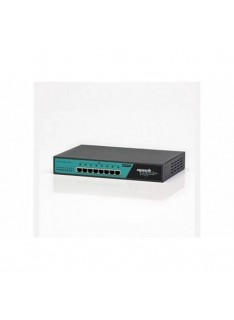

SWITCH RETE 8 PORTE 10/100 MBPS POE (NW-SP8-002)
133,53 €
Tasse incluse
Switch di rete Mach Power - 10/100 Mbps - 8 Porte POE IEEE 802 .3af 150W Unmanaged
-
Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
-
Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
-
Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
Questo switch può fornire energia ai dispositivi supportati PoE supportati tramite CAT 5E e sopra i cavi a spirale; Integrando i dati che trasmettono ed
alimentazione elettrica, elimina lo sforzo di costruire la rete;
Supporta una potenza di uscita massima di 30 W su ogni singola porta PoE ed un massimo distanza di trasmissione di 100m.
| MODEL | NW-SP8-002 |
| Fixed Ports | 8 x 10/100Mbps ports |
| Standards and Protocol | IEEE 802.3AF 60WIEEE802.3af/at |
| Output power max | 30W (single port) |
| Total Output Power | 150W |
| PoE Pin-out | 1/2(+),3/6(-); 4/5(+),7/8(-) for customization |
| Switching Capacity | ≥1.6Gbps |
| Forward Mode | Full wire-speed storage and forwarding |
| Forwarding Rate | 10M |
| Operation Temperature | -20~50°C |
| Storage Temperature | -40~70°C |
| Operation Humidity | 10%~90%(non-condensing) |
| Storage Humidity | 5%~95%(non-condensing) |
| Dimensions (mm) | 280 x 180 x 44 |
| Input Power Supply | AC |
| Weight | < 1.5Kg |
| LED | Indicator Power,Link/Act,PoE Status |
| Energy Saving | Comply with “EEE” Energy Efficient Ethernet |
| Standards / Protocols | IEEE 802.3af,Power Over Ethernet IEEE 802.3at,Power Over Ethernet Plus IEEE 802.3u,100BASE-TX IEEE 802.3x,Full-Duplex Flow Control IEEE 802.3az,EEE(Energy Efficient Ethernet) |
| MAC Address Table | UP to 8K MAC addresses Support auto-update, two-way learning |
| Port Flow Control | Back-pressure traffic control under Half-Duplex mode, IEEE 802.3x traffic control under Full-Duplex mode |
| Jumbo Frame | Maximum support 9216Byte |
| Physic Medium | 0/100MBase-TX |
| Network Cable Deployment | Support Auto-MDIX function, automatically identify straight forward cable and cross-over cable |
| Negotiation Pattern | Support port auto-negotiation function( automatically negotiate transmission rate and Duplex modes |
Switch di rete Mach Power - 10/100 Mbps - 8 Porte POE IEEE 802 .3af 150W Unmanaged
