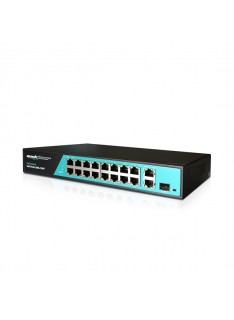

SWITCH RETE 16 PORTE 10/100 MBPS POE (SW-UF16P2L1S-070)
210,29 €
Tasse incluse
Switch di rete Mach Power - 10/100 Mbps - 16 Porte POE + 2GE +1 SFP - 120W VLAN up to 50m
-
Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
-
Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
-
Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
| Description | 16 ports 10/100Mbps IEEE 802.3af/at PoE switch |
| Power Supply mode | Power adaptor |
| Voltage range | DC 48~56V |
| Power consumption | The device <5W |
| PoE power supply ≤120W | |
| Network port parameter | Network port parameter |
| Network Port | Ethernet downlink port = 10/100Mbps |
| Ethernet 2 uplink port = 10/100Mbps | |
| Transmission distance | Downlink port= 100m |
| Mandatory 10Mbps up to 250m | |
| Uplink port= 100m | |
| Transmission medium | Downlink port= Cat5e/6 standard cable |
| Uplink port= Cat5e/6 standard cable | |
| PoE standard | IEEE802.2af/qt standard |
| PoE power supply mode | End-span method |
| Each port ≤30W | |
| PoE power supply wattage | Whole device ≤120W |
| Network switch specification | Network switch specification |
| Network standards | IEEE802.3 10base-T |
| IEEE802.3u 100base-TX/FX | |
| IEEE802.3az | |
| Swap mode | Store and forward |
| Data-caching mechanism | 1M |
| MAC address list | 2K |
| Throughput | 1.48Mbps |
| Indicator | Indicator |
| Power indicator | Red led on= power on |
| Fast ethernet uplink port | Green led on= link up |
| Green led off= link down | |
| Green led blinks= data transfer | |
| Yellow led on= link speed is 100Mbps | |
| Yellow led off= link speed is 10Mbps | |
| PoE indicator | 16 PoE indicator light yellow |
| PoE network/PoE indicator | 16 ports indicators blink while data transfer |
| Rest indicator | Green light on when press reset button |
| Button | Button |
| VLAN indicator | Green light on when press VLAN button |
| Reset button | Press the reset button to turn indicator green and device restart |
| VLAN button | Turn on VLAN button= indicator on and VLAN function restart |
| Turn off VLAN button= indicator off and VLAN function stops | |
| Protection level | Protection level |
| Surge protection | 6KV (common mode), 10/700us IEC61000-4-5 |
| 2KV (differential mode), 10/700us IEC61000-4-5 | |
| Electrostatic protection | Contact Discharge= ±4KV |
| Air Discharge= ±6KV | |
| Standard= IEC61000-4-2 | |
| Reliability | Reliability |
| Mean time btw failures | >50.000h |
| Mechanical | Mechanical |
| Dimension (mm) | 211L x 118W x 35H |
| Housing | Galvanized |
| Body color | Black |
| Net weight | 612g |
| Environmental | Environmental |
| Operating temperature | 0°C~ 55°C |
| Storage temperature | -40°C~ 85°C |
| Relative Humidity | 0~ 95% (non-condensing) |
Switch di rete Mach Power - 10/100 Mbps - 16 Porte POE + 2GE +1 SFP - 120W VLAN up to 50m
