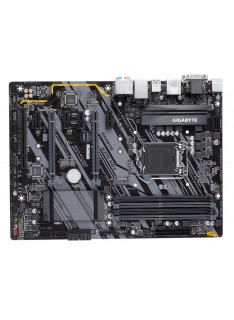

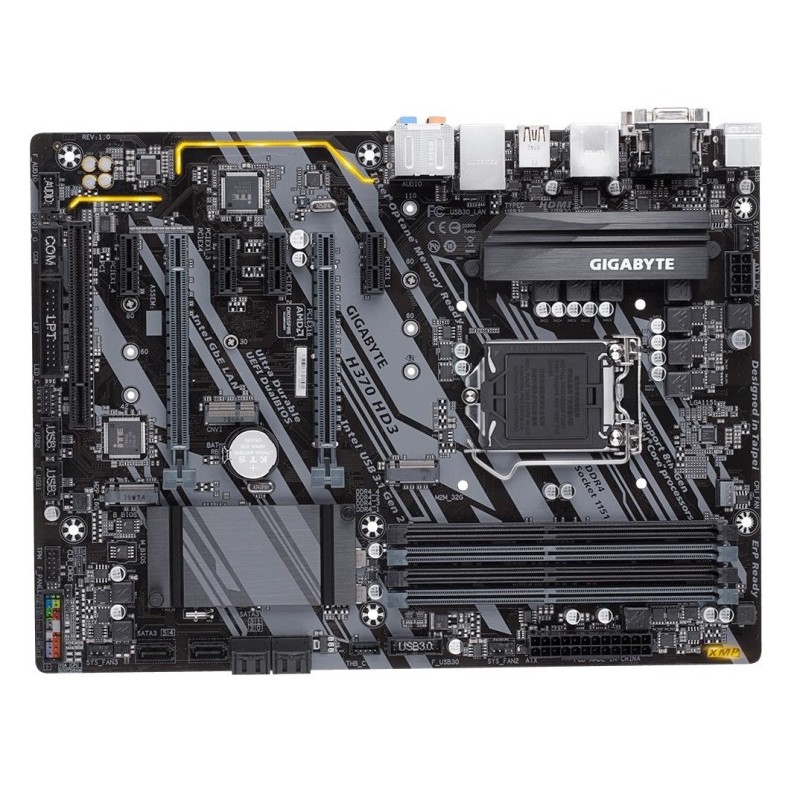

(OUTLET) SCHEDA MADRE H370 D3 (1.0) SK1151 (GA-H370-HD3)

Supporta processori Intel® Core ™ di 8 ° generazione
Nuovo design ibrido PWM digitale
Memoria Intel® Optane ™ pronta
DDR4 non bufferata non ECC a doppio canale
Intel® USB 3.1 Gen 1 con USB Type-C ™
Intel® Native USB 3.1 Gen2 USB Type-A
CEC 2019 Pronto, risparmia energia con un clic
Dual Ultra-Fast M.2 con interfaccia PCIe Gen3 X4 / X2 e SATA
Condensatori audio di alta qualità e protezione antirumore audio con LED Trace Path Lighting
Aggiornabile con Intel® CNVi 802.11ac Wave2 2T2R WIFI
Intel® GbE LAN con software cFosSpeed Internet Accelerator
Ultra Durable ™ 25KV ESD e 15KV Surge LAN Protection
Progettazione di resistori anti-zolfo
Smart Fan 5 offre sensori di temperatura multipli e intestazioni di ventole ibride con FAN STOP
RGB FUSION supporta strisce LED RGB in 7 colori
Supporto Intel® Thunderbolt ™ 3 AIC ultraleggero

• Processore
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. La Cache L3 varia da CPU a CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel® H370 Express Chipset
• Memoria
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
  2. Architettura di memoria a doppio canale
  3. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for DDR4 2666/2400/2133 MHz memory modules
  6. Supporta le memorie dotate di Profilo XMP
  7. * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

  (Please refer "Memory Support List" for more information.)
• Grafica integrata
  Integrated Graphics Processor - Intel® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  4. * Support for HDMI 1.4 version and HDCP 2.2.

  Support for up to 3 displays at the same time
  Maximum shared memory of 1 GB
• Audio
  1. Realtek^® ALC887 codec
  2. Audio ad alta definizione
  3. Audio a 2/4/5.1/7.1 canali
  4. Supporto per S / PDIF
• LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
• Slot di Espansione
  1. 1 Slot PCI Express 16X,
     operante a 16X

     *Per migliori Performance, se solo una Scheda Video PCI è installata,
     assicurati che questi sia inserita in uno Slot PCI Express 16X.
  2. 1 x Slot PCI Express x16, funzionante a x4 (PCIEX4)
  3. 4 x PCI Express x1 slots
  4. (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  5. 1 x PCI slot
  6. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
• Interfaccia di storage
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  5. * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

  Intel® Optane™ Memory Ready
• Tecnologia Multi GPU
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• USB
  Chipset:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
  2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
  3. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
  4. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  5. * The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.
• Connettori Interni I/O
  1. 1 x 24-pin ATX main power connector
  2. 1 Connettore di Alimentazione ATX ad 8-pin
  3. 1 Connettore per Ventola della CPU
  4. 3 x system fan headers
  5. 1 x RGB LED strip header
  6. 6 x SATA 6Gb/s connectors
  7. 2 x M.2 Socket 3 connectors
  8. 1 x front panel header
  9. 1 Connettore per uscite Audio Frontali
  10. 1 x S/PDIF Out header
  11. 1 x USB 3.1 Gen 1 header
  12. 2 x Connettori USB 2.0/1.1
  13. 1 x Thunderbolt™ add-in card connector
  14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      La funzione TPM è opzionale in base alla regolamentazione dei vari stati
  15. 1 x parallel port header
  16. 1 Porta seriale
  17. 1 x Clear CMOS jumper
• Pannello Posteriore I/O
  1. 1 Connessione per Mouse e Tastiera PS/2
  2. 1 x Porta D-Sub
  3. 1 x Porta DVI-D
  4. 1 Porta HDMI
  5. 1 x USB 3.1 Gen 2 Type-A port (red)
  6. 3 x USB 3.1 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 Porta RJ-45
  9. 6 x audio jacks
  10. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
  11. 4 x USB 3.1 Gen 1 ports
• I/O Controller
  1. iTE® I/O Controller Chip
• Monitoraggio H/W
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
  7. * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Altre Caratteristiche
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @ BIOS ™
     Auto Green
     Support for Cloud Station
     EasyTune
     Fast Boot
     Game Boost
     Support for On/Off Charge
     Platform Power Management
     RGB Fusion
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     Smart HUD
     System Information Viewer
     USB Blocker
     V-Tuner
     Easy RAID
  2. Supporta il Q-Flash
  3. Support for Xpress Install
• Software in Bundle
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
• Sistema Operativo
  1. Support for Windows 10 64-bit
• Caratteristiche Fisiche
  1. ATX Form Factor; 30.5cm x 22.5cm
