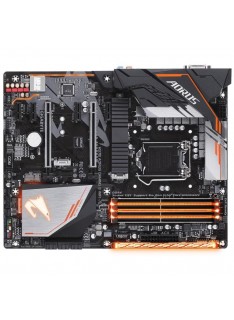

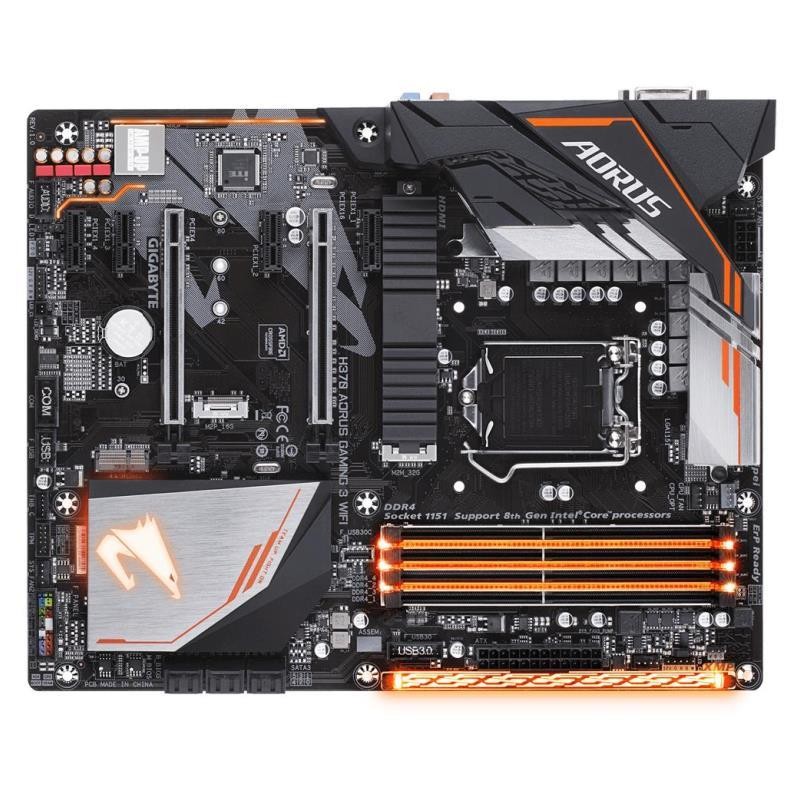

SCHEDA MADRE H370 AORUS GAMING 3 WIFI (Rev. 1.0) SK1151
  • SCHEDA MADRE H370 AORUS GAMING 3 WIFI (Rev. 1.0) SK1151

SCHEDA MADRE H370 AORUS GAMING 3 WIFI (Rev. 1.0) SK1151

156,43 €
Tasse incluse
GIGABYTE
0000039711

Riferimenti Specifici

Scheda madre Gigabyte H370 AORUS GAMING 3 Wifi - Socket 1151 - Supporto Cpu Intel SOLO di 8° generazione Intel Celeron, Core i3, Core i5, Core i7, Pentium - Ram 4x DDR4 2666 fino a 2133 MHz - 1x HDMI, 1x DVI - 4x USB3.1 - Glan - Audio HD 7.1 - Modulo Wifi integrato - ATX
Quantità
Non disponibile

  • Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente) Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
  • Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente) Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
  • Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente) Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
  • Supporto 8th Gen Intel® Core™ Processors
  • New Hybrid Digital PWM Design
  • Dual Channel Non-ECC Unbuffered DDR4
  • Intel® Optane™ Memory Ready
  • Intel® Native USB 3.1 Gen2 with USB Type-C™ and Type-A
  • Intel® USB 3.1 Gen 1 with USB Type-C™
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 (1 with Thermal Guard) & SATA interface
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Immersive Gaming ViBes with ALC1220-VB and WIMA audio capacitors
  • Intel® CNVi 802.11ac Wave2 2T2R WIFI
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips
  • Swappable Overlay for Accent LED



  • Processore
    1. Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
    2. La Cache L3 varia da CPU a CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® H370 Express Chipset
  • Memoria
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    2. Architettura di memoria a doppio canale
    3. Support for DDR4 2666/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Supporta le memorie dotate di Profilo XMP
    7. * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
    ((Per maggiori informazioni fare riferimento alla Lista di memorie compatibili))
  • Grafica integrata
    Integrated Graphics Processor - Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    2. * Support for HDMI 1.4 version and HDCP 2.2.
    3. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    Maximum shared memory of 1 GB
  • Audio
    1. Realtek® ALC1220 codec
    2. Audio ad alta definizione
    3. Audio a 2/4/5.1/7.1 canali
    4. Supporta uscite S/PDIF
  • LAN
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Slot di Espansione
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x Slot PCI Express x16, funzionante a x4 (PCIEX4)
    3. 4 x PCI Express x1 slots
    4. (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    5. 1 x M.2 Socket 1 connector for an Intel® CNVi or a PCIe wireless module (CNVI)
    6. * H370 AORUS GAMING 3 WIFI includes the GC-CI22M_A CNVi wireless module.
  • Tecnologia Multi GPU
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Interfaccia di storage
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)
    2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
    3. 6 x SATA 6Gb/s connectors
    4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    5. * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
  • USB
    Chipset:
    1. 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
    2. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
    3. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
    4. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    5. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Connettori Interni I/O
    1. 1 Connettore di Alimentazione ATX a 24-pin
    2. 1 Connettore di Alimentazione ATX ad 8-pin
    3. 1 Connettore per Ventola della CPU
    4. 1 x water cooling CPU fan header
    5. 2 x sistema di ventilazione
    6. 1 x system fan/water cooling pump header
    7. 2 x digital LED strip headers
    8. 2 x digital LED strip power select jumpers
    9. 2 x RGB (RGBW) LED strip headers
    10. 2 x M.2 Socket 3 connectors
    11. 1 Connettore per Pannello Frontale
    12. 1 Connettore per uscite Audio Frontali
    13. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
    14. 1 x USB 3.1 Gen 1 header
    15. 1 x USB 2.0/1.1 header
    16. 1 Porta seriale
    17. 1 x S/PDIF Out header
    18. 1 x Thunderbolt™ add-in card connector
    19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      La funzione TPM è opzionale in base alla regolamentazione dei vari stati
    20. 1 x Clear CMOS jumper
    21. 6 x SATA 6Gb/s connectors
  • Pannello Posteriore I/O
    1. 4 x USB 2.0/1.1 ports
    2. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
    3. 2 x USB 3.1 Gen 1 ports
    4. 1 Connessione per Mouse e Tastiera PS/2
    5. 1 x Porta DVI-D
    6. 1 Porta HDMI
    7. 1 x USB 3.1 Gen 2 Type-A port (red)
    8. 1 Porta RJ-45
    9. 6 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • Monitoraggio H/W
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
    8. * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Altre Caratteristiche
    1. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    2. 3D OSD
    3. @ BIOS ™
    4. Auto Green
    5. Support for Cloud Station
    6. EasyTune
    7. Easy RAID
    8. Fast Boot
    9. Game Boost
    10. Support for On/Off Charge
    11. Platform Power Management
    12. RGB Fusion
    13. Smart Backup
    14. Smart Keyboard
    15. Smart TimeLock
    16. Smart HUD
    17. System Information Viewer
    18. USB Blocker
    19. V-Tuner
    20. Supporta il Q-Flash
    21. Support for Xpress Install
  • Software in Bundle
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Sistema Operativo
    1. Support for Windows 10 64-bit
  • Caratteristiche Fisiche
    1. ATX Form Factor; 30.5cm x 24.4cm
