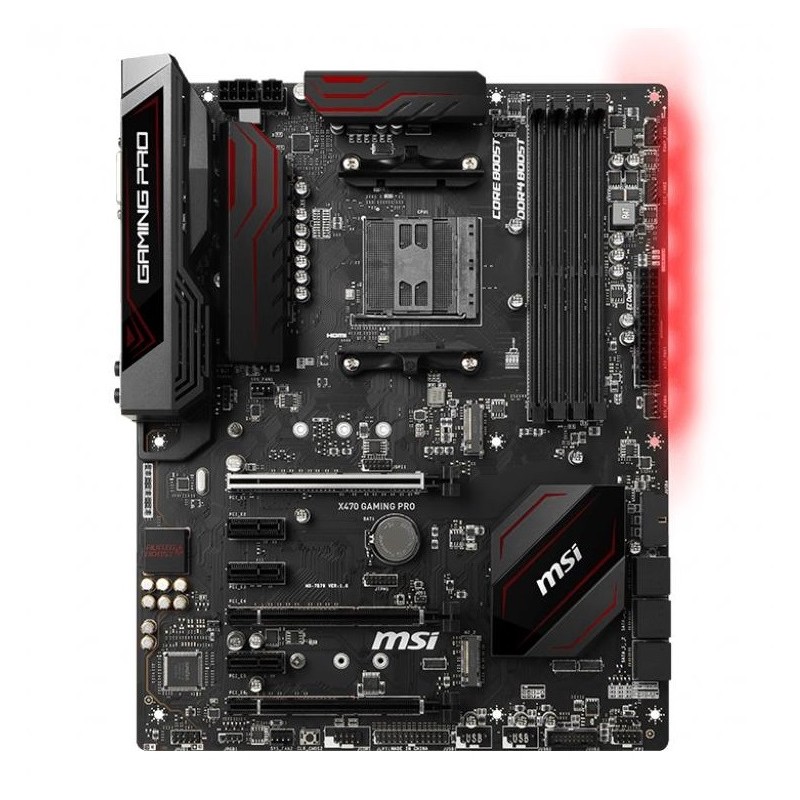

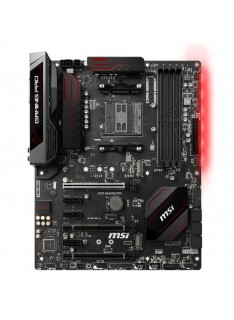

SCHEDA MADRE X470 GAMING PRO SK AM4 (7B79-001R)
  • SCHEDA MADRE X470 GAMING PRO SK AM4 (7B79-001R)

SCHEDA MADRE X470 GAMING PRO SK AM4 (7B79-001R)

152,94 €
Tasse incluse
MSI
0000039859

Riferimenti Specifici

Scheda Madre MSI X470 GAMING PRO - Socket AM4 - Supporto Cpu processori AMD® RYZEN™ e AMD® A-series / Athlon™ su socket AM4 - 4x DDR4 1866,2133,2400,2667(OC) Mhz - RAID 0, 1,10 - HDMI, DVI-D - SATA3 M.2 - USB 3.1 - Gigabit LAN - PCI Express x16 - VR Ready - ATX
Quantità
Non disponibile

  • Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente) Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
  • Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente) Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
  • Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente) Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
  • Supporta AMD®  Ryzen™ di 1° e 2° Generazione/ Ryzen™ con processore grafico Radeon™ Vega e AMD® A-series / Athlon™ per Socket AM4
  • Supporta memorie DDR4-3466+(OC)
  • DDR4 Boost: Incrementa le prestazioni delle memorie DDR4
  • Mystic Light e Mystic Light Sync: 7 colori e 7 effetti in un solo click. Sincronizza le altre soluzioni RGB e ottieni massima personalizzazione
  • Esperienza di gioco ultra veloce: TURBO M.2, StoreMI, AMD Turbo USB 3.1 GEN2
  • Audio Boost con Nahimic: Premia le tue orecchie con la miglior qualità audio possibile
  • Core Boost: Layout premium e design di potenza ottimizzato
  • MULTI-GPU: Con slot STEEL ARMOR PCI-E. Supportas 3-Way AMD Crossfire™
  • VR Ready: Ottimizzazione automatica del sistema per l'utilizzo VR
  • In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
  • EZ Debug LED: Semplice risoluzione dei problemi
  • GAMING CERTIFIED: 24 ore di test effettuati dai giocatori di eSport
  • Click BIOS 5



Processor

Supporta AMD® Ryzen™ di 1° e 2° Generazione/ Ryzen™ con processore grafico Radeon™ Vega e AMD® A-series / Athlon™ per Socket AM4

Chipset

AMD® X470 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  1. A-series/ Athlon™ processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.

Slots

  • 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
    • Ryzen™ Desktop Processors support x16/x0, x8/x8 mode
    • Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors support x8/x0 mode
  • 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)
  • 3 x PCIe 2.0 x1 slots
  1. PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

Multi-GPU

  • Ryzen™ Desktop Processors
    • Supports 3-Way AMD® CrossFire™ Technology
  • Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
    • Supports 2-Way AMD® CrossFire™ Technology

Storage

AMD® X470 Chipset

  • 6 x SATA 6Gb/s ports
  • 2 x M.2 ports (Key M)
    • M2_1 slot (from AMD® processor) supports PCIe 3.0 x4 (Ryzen™ Desktop Processors ) or PCIe 3.0 x2 (A-series/ Athlon™ Processors) 2242/ 2260 /2280/ 22110 storage devices
    • M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
  1. SATA1 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
  2. PCI_E6 slot will be unavailable when installing PCIe M.2 SSD in M2_2 slot.

RAID

AMD® X470 Chipset

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Onboard Graphics

  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
  1. Only support when using Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
  2. Maximum shared memory of 2048 MB

USB

ASMedia® ASM1143 Chipset

  • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel

AMD® X470 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB connectors
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AMD® CPU

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1 x Realtek® 8111H Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin PUMP fan connector (supports up to 2A)
  • 4 x 4-pin system fan connectors
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 2 x 5050 RGB LED strip 12V connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Clear CMOS button

Back panel ports

  1. PS/2 Combo Port
  2. USB 3.1 Gen1
  3. LAN Port
  4. HD Audio Connectors
  5. USB 2.0 Port
  6. DVI-D Port
  7. HDMI Port
  8. USB 3.1 Gen1
  9. USB 3.1 Gen2
  10. Optical S/PDIF OUT


Dimensions

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
