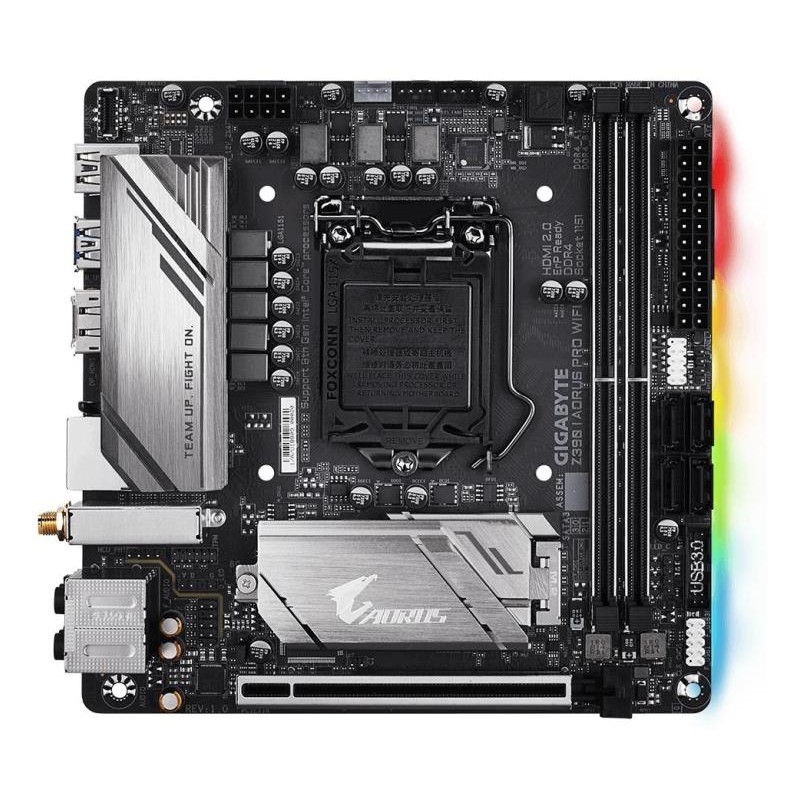

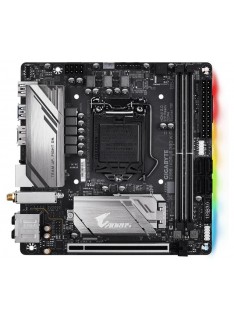

SCHEDA MADRE GA-Z390-I-PRO-WIFI AORUS (REV 1.0) SK1151

Supporta processori Intel® Core ™ di nona e ottava generazione
     DDR4 senza buffer senza ECC a doppio canale, 2 DIMM
     Predisposizione per memoria Intel® Optane ™
     Soluzione VRM VR digitale a 6 fasi con PowIRstage
     Design termico avanzato con dissipatore di calore a pinne esteso
     Wi-Fi Intel® CNVi 802.11ac 2x2 Wave 2 integrato
     ALC1220-VB Potenzia SNR 114dB (posteriore) / 110dB (anteriore) nel microfono con condensatori audio NICHICON
     Intel® Gigabit LAN con cFosSpeed
     RGB FUSION 2.0 con design multi-zona indirizzabile per spettacoli di luci a LED, supporta LED indirizzabili e strisce LED RGB
     Smart Fan 5 è dotato di più sensori di temperatura e testate ibride con FAN STOP
     Frontale USB 3.1 Gen 1 Type-C ™ Header
     Doppia Ultra-Fast M.2 con interfaccia PCIe Gen3 x4, una con Thermal Guard
     Pronto per CEC 2019, risparmia energia con un semplice clic

• CPU
  1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
  2. L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel^® Z390 Express Chipset
• Memory
  1. 2 x DDR4 DIMM sockets supporting up to 64GB (32GB single DIMM capacity) of system memory**
     ** Please note that the support for system total memory size depends on the CPU installed.
  2. Dual channel memory architecture
  3. Support for DDR4 4400(O.C.) / 4333(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  Integrated Graphics Processor+MegaChips MCDP2800 chip:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.0 version, HDCP 2.2, and HDR.

  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.

  Maximum shared memory of 1 GB
  Actual support may vary by CPU.
• Audio
  1. Realtek^® ALC1220-VB codec
     * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. Intel^® GbE LAN chip (10/100/1000 Mbit)
• Wireless Communication module
  1. Intel^® CNVi interface Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5
  3. Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
     * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
  2. 1 x M.2 Socket 1 connector for an Intel^® CNVi wireless module only (CNVI)
• Storage Interface
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
  2. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
  3. 4 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

  Intel^® Optane™ Memory Ready
• USB
  Chipset:

  1. 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
  2. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
  3. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
  4. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  5. 2 x USB 2.0/1.1 ports available through the internal USB header
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x digital LED strip header
  6. 1 x digital LED strip power select jumper
  7. 1 x RGB LED strip header
  8. 4 x SATA 6Gb/s connectors
  9. 2 x M.2 Socket 3 connectors
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x speaker header
  13. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
  14. 1 x USB 3.1 Gen 1 header
  15. 1 x USB 2.0/1.1 header
  16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  17. 1 x Clear CMOS jumper
  18. 1 x chassis intrusion header
• Back Panel Connectors
  1. 1 x DisplayPort
  2. 1 x HDMI port
  3. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  4. 1 x USB 3.1 Gen 2 Type-A port (red)
  5. 4 x USB 3.1 Gen 1 ports
  6. 1 x RJ-45 port
  7. 2 x SMA antenna connectors (2T2R)
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
• I/O Controller
  1. iTE^® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @BIOS
     AutoGreen
     Cloud Station
     EasyTune
     Easy RAID
     Fast Boot
     Game Boost
     ON/OFF Charge
     Platform Power Management
     RGB Fusion
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     Smart HUD
     Smart Survey
     System Information Viewer
     USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
• Bundled Software
  1. Norton^® Internet Security (OEM version)
  2. cFosSpeed
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
