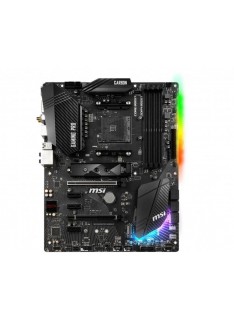

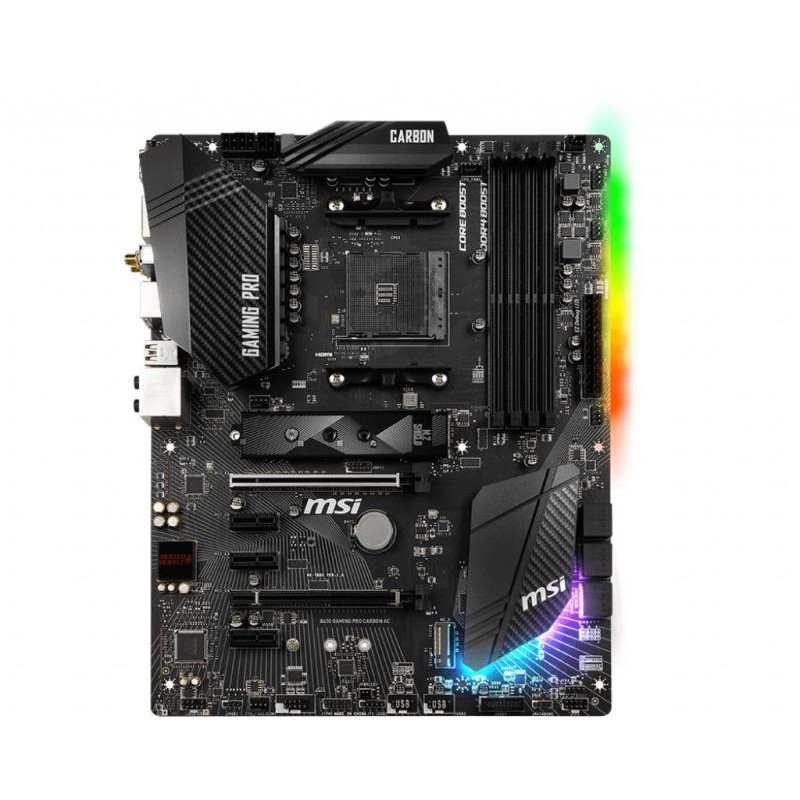

SCHEDA MADRE B450 GAMING PRO CARBON AC (7B85-001R) SK AM4

Chipset

AMD^® B450 Chipset

Memory

• 4 x DDR4 memory slots, support up to 64GB
  • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)

1. Please refer www.msi.com for more information on compatible memory.

Slots

• 1 x PCIe 3.0 x16 slot (PCI_E1)
  • Supports x16 speed with AMD^® Ryzen™ 1st and 2nd Generation processors
  • Supports x8 speed with AMD^® Ryzen™ with Radeon Vega Graphics processors
• 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
• 3 x PCIe 2.0 x1 slots
  1. PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
  2. PCI_E4 will run x1 speed when installing devices in any PCIe 2.0x1 slot.

Multi-GPU

• Ryzen™ Desktop Processors
  • Supports 2-Way AMD^® CrossFire™ Technology

Storage

AMD^® B450 Chipset

• 4 x SATA 6Gb/s ports
• 1 x M.2 slot (M2_2, Key M)
  • Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices

AMD^® CPU

• 1 x M.2 slot (M2_1, Key M)
  • Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
• 2 x SATA 6Gb/s ports

1. PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
2. SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M2_1 slot.

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe RAID

Onboard Graphics

• 1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz*
• 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz

1. Only support when using AMD^® Ryzen™ with Radeon Vega Graphics Processors
2. Maximum shared memory of 2048 MB

USB

AMD^® B450 Chipset

• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
• 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD^® CPU

• 2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek^® ALC1220 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

WiFi & Bluetooth

Intel^® Dual Band Wireless-AC 9260

• Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 1.73 Gbps speed.
• Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE,4.2
• 1 x M2_3 slot with E key (Wi-Fi mode)

LAN

• 1 x Intel^® I211AT Gigabit LAN controller

Internal connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump-fan connector
• 4 x 4-pin system fan connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Serial Port connector
• 1 x Clear CMOS jumper
• 1 x 2pin LED Power connector
• 2 x 5050 RGB LED strip 12V connectors (JRGB1~2)
• 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
• 1 x CORSAIR connector (JCORSAIR1)

Back panel ports

Dimensions

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

Mounting

9 mounting holes

Operating System

• Support for Windows^® 10 64-bit
• Support for Windows^® 7 64-bit
