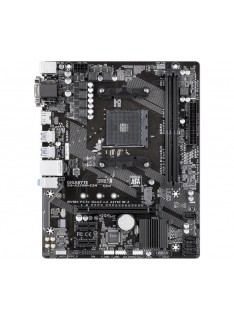

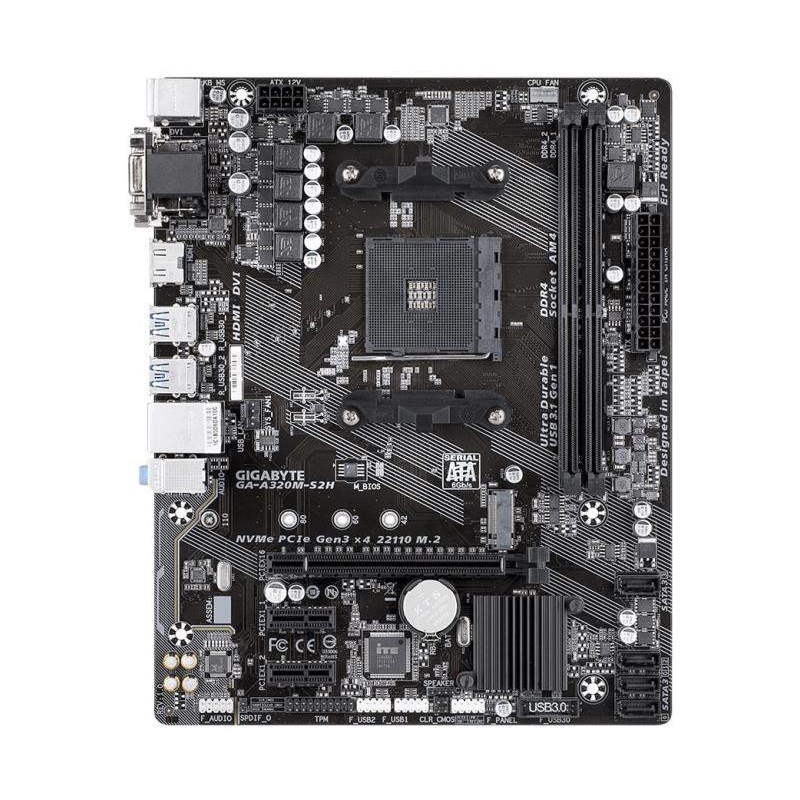

SCHEDA MADRE GA-A320M-S2H V2 (REV 1.1) SK AM4

Supporta AMD Ryzen ™ 2nd Generation / Ryzen ™ con Radeon ™ Vega Graphics / Athlon ™ con Radeon ™ Vega Graphics / Ryzen ™ 1a generazione / 7a generazione A-series / Athlon X4 Processori
     DDR4 a 2 canali non ECC non bufferati, 2 DIMM
     Ultra veloce PCIe Gen3 x4 M.2 con supporto PCIe NVMe e SATA
     Condensatori audio di alta qualità e protezione antirumore audio
     Realtek® Gigabit LAN con software cFosSpeed Internet Accelerator
     Smart Fan 5 è dotato di 5 sensori di temperatura e 2 testate ibride
     GIGABYTE ™ UEFI BIOS
     Tutto il nuovo Centro APP GIGABYTE ™, semplice e facile da usare

• Processore
  AM4 Socket:

  1. Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. AMD A320
• Memoria
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  2. Architettura di memoria a doppio canale
  3. Support for DDR4 3200(O.C.) / 2933(O.C.) / 2667* / 2400 / 2133 MHz memory modules
  4. * Actual support may vary by CPU.
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Supporta le memorie dotate di Profilo XMP

  (Please refer "Memory Support List" for more information.)
• Grafica integrata
  Integrated Graphics Processor:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
     * Support for HDMI 1.4 version.

  Maximum shared memory of 2 GB
  * Actual support may vary by CPU.
• Audio
  1. Realtek^® ALC887 codec
  2. Audio ad alta definizione
  3. 2/4/5.1/7.1-channel

     * Per configurare l' audio 7.1 devi usare un modulo frontale HD e abilitare il Multi Channel Audio dal pannello di controllo dei tuoi driver
  4. Supporta uscite S/PDIF
• LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
• Slot di Espansione
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  2. (Lo Slot PCIEX16 è conforme allo standard PCI Express 3.0.)
  3. 2 x Slot PCI Express x1

     (Gli Slot PCI Express x1 sono conformi allo standard PCI Express 2.0.)

  * Actual support may vary by CPU.
• Interfaccia di storage
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
  2. * Actual support may vary by CPU.
  3. * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU.
  4. 4 x SATA 6Gb/s connectors
  5. Support for RAID 0, RAID 1, and RAID 10
  6. * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
• USB
  Chipset:

  1. 2 x USB 3.1 Gen 1 ports (available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

  CPU:

  1. 4 x USB 3.1 Gen 1 ports on the back panel
• Connettori Interni I/O
  1. 1 Connettore di Alimentazione ATX a 24-pin
  2. 1 Connettore di Alimentazione ATX ad 8-pin
  3. 4 Connessioni SATA 6Gb/s
  4. 1 Connettore per Ventola della CPU
  5. 1 x Connettore per System Fan
  6. 1 Connettore per Pannello Frontale
  7. 1 Connettore per uscite Audio Frontali
  8. 1 x S/PDIF Out header
  9. 1 x USB 3.1 Gen 1 header
  10. 2 x Connettori USB 2.0/1.1
  11. 1 x speaker header
  12. 1 x chassis intrusion header
  13. 1 x Clear CMOS jumper
  14. 1 x M.2 Socket 3 connector
  15. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
      La funzione TPM è opzionale in base alla regolamentazione dei vari stati
• Pannello Posteriore I/O
  1. 1 Porta RJ-45
  2. 3 x audio jacks (Line In, Line Out, Mic In)
  3. 1 x Porta D-Sub
  4. 1 x PS/2 mouse port
  5. 1 x PS/2 keyboard port
  6. 2 x USB 2.0/1.1 ports
  7. 4 x USB 3.1 Gen 1 ports
  8. 1 x Porta DVI-D
  9. 1 Porta HDMI
• I/O Controller
  1. iTE® I/O Controller Chip
• Monitoraggio H/W
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
  7. *Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Altre Caratteristiche
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     Auto Green
     BIOS Setup
     Support for Cloud Station
     Color Temperature
     EasyTune
     Fast Boot
     Game Boost
     Supporto alla tecnologia ON/OFF Charge
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     System Information Viewer
     USB Blocker
     V-Tuner
     @ BIOS ™
  2. Supporta il Q-Flash
  3. Support for Xpress Install
• Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
• Sistema Operativo
  1. Support for Windows 10 64-bit
  2. Support for Windows 7 64-bit
  3. * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.
  4. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
• Caratteristiche Fisiche
  1. Micro ATX Form Factor; 24.4cm x 19.5cm
