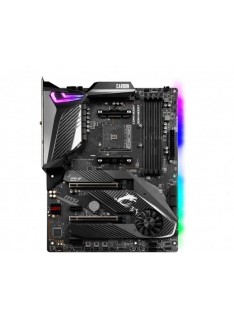

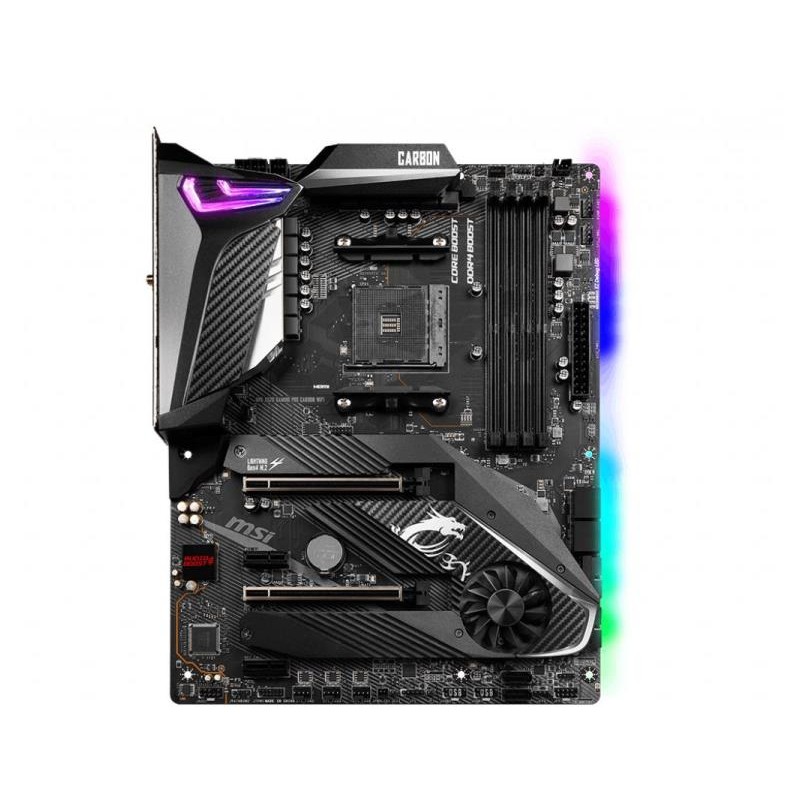

SCHEDA MADRE MPG X570 GAMING PRO CARBON WIFI (7B93-005R) SK AM4
  • SCHEDA MADRE MPG X570 GAMING PRO CARBON WIFI (7B93-005R) SK AM4
  • SCHEDA MADRE MPG X570 GAMING PRO CARBON WIFI (7B93-005R) SK AM4

SCHEDA MADRE MPG X570 GAMING PRO CARBON WIFI (7B93-005R) SK AM4

243,37 €
Tasse incluse
MSI
0000047457

Riferimenti Specifici

Scheda Madre Msi MPG X570 GAMING PRO CARBON Wifi - Socket AM4 - Supporto 2^ e 3^ Gen. Cpu AMD Socket AM4 AMD Ryzen™ 2nd Generation/ Ryzen - 4x DDR4 4400+ (OC) (Ryzen CPU) - Hdmi - RAID 0, 1,10 - SATA3 M.2 - 2x USB 3.2 Gen2, USB 3.1 ( Type-A) - Gigabit LAN - Audio HD 7.1 - PCI Express x16 - ATX
Quantità
Non disponibile

  • Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente) Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
  • Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente) Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
  • Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente) Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)

Ispirata dalle supercar, questa scheda madre offre una personalizzazione immensa con Mystic Light RGB e Ambient Link, ottimizzata per prestazioni ancora migliori grazie a Core Boost, DDR4 Boost, M.2 Shield Frozr, WiFi 6, Frozr Heatsink Design, Lightning Gen4 e Shield I/O preinstallato.

  • Supporta processori AMD Ryzen™ 2a e 3a generazione / Ryzen™ con Radeon™ Vega Graphics e AMD Ryzen™ 2a generazione con Radeon™ Graphics Desktop Processors per socket AM4.
  • Supporta 4 DIMMs, memoria Dual Channel DDR4, fino a 4400+(OC) MHz.
  • Soluzione Lightning Gen 4: la soluzione PCI-e M.2 Gen4 più innovativa con larghezza di banda fino a 64 GB/s per la massima velocità di trasferimento e prestazioni.
  • MYSTIC LIGHT: 16.8 millioni di colori / 29 effetti controllabili in un click. MYSTIC LIGHT EXTENSION supporta sia le strisce LED Rainbow che RGB.
  • Frozr Heatsink Design : progettato con ventola e doppi cuscinetti a sfera per fornire le migliori prestazioni ai giocatori e ai prosumer più appassionati.
  • Set Core Power Free: Core Boost, pin connettore di potenza CPU 8+4, DDR4 Boost
  • Audio Boost 4 con NAHIMIC: premia le tue orecchie con una qualità del suono da studio.
  • Dragon Center: Un software nuovo di zecca che integra tutti gli strumenti MSI come GAME MODE, VOICE BOOST, LIVE UPDATE, AMBIENT LINK con un'interfaccia utente user friendly.





Processor

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

Chipset

AMD® X570 Chipset

Memory

  • 4x DDR4 memory slots, support up to 128GB
    • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
    • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.


Expansion Slots

  • 1x PCIe 4.0/3.0 x16 slot (PCI_E1)
    • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
    • 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
  • 1x PCIe 4.0/3.0 x4 slot (PCI_E3)
  • 2x PCIe 3.0 x1 slots
  1. The speeds may vary for different devices

Onboard Graphics

  • 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz

Multi-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

Storage

AMD® X570 Chipset

  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD® Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™ Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) 2242/2260/2280 storage devices
    • M2_2 slot (from AMD® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
  1. The speeds may vary for different devices

RAID

AMD® X570 Chipset

  • Supports RAID 0, RAID 1 and RAID 10

USB

AMD® X570 Chipset

  • 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panell
  • 4x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® Processor

  • 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port on the back panel
  • 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output

LAN

  • 1x Intel® I211AT Gigabit LAN controller

WiFi & Bluetooth

Intel® Wi-Fi 6 AX200

  • The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot
  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth® 5

Internal connectors

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x TPM module connector
  • 1x Clear CMOS jumper
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x 3-pin CORSAIR connector
  • 1x 2-pin LED Demo Connect
  • 4x EZ Debug LEDs

Back panel ports

  1. Keyboard / Mouse
  2. USB 3.2 Gen1 Type-A
  3. Wireless / Bluetooth
  4. LAN
  5. Audio Connectors
  6. Flash BIOS Button
  7. USB 2.0
  8. HDMI
  9. USB 3.2 Gen2 Type-A + C
  10. USB 3.2 Gen2 Type-A
  11. Optical S/PDIF out


Dimensions

  • 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
  • ATX Form Factor

Mounting

9 mounting holes

Operating System

  • Support for Windows® 10 64-bit
