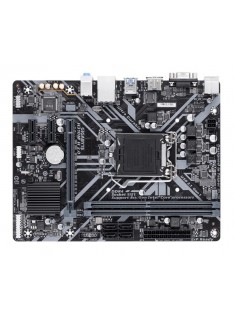

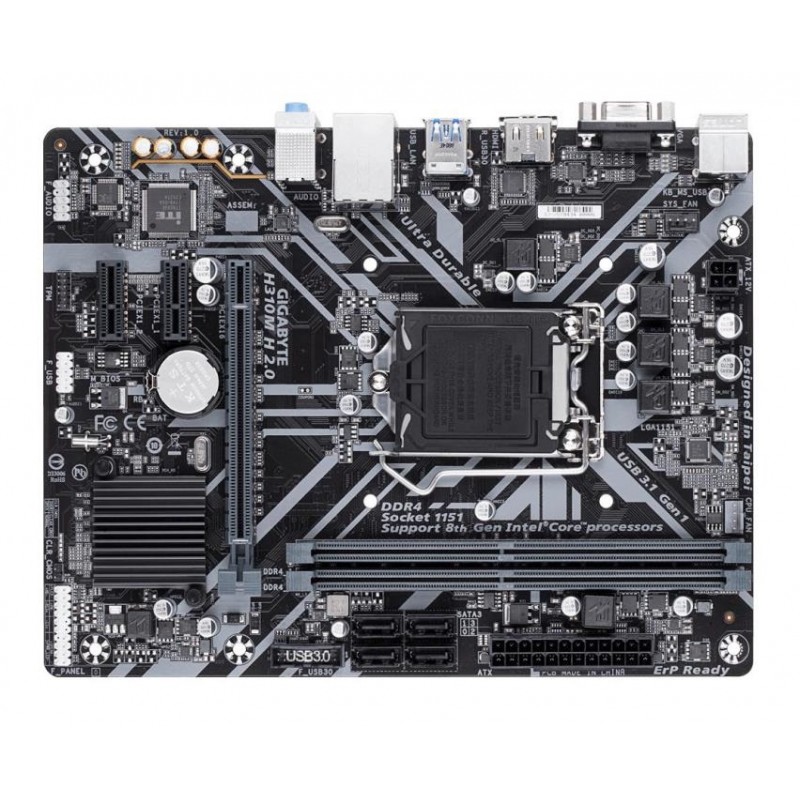

SCHEDA MADRE GA-H310M-H 2.0 (V1.0) SK 1151

Supporta processori Intel® Core ™ di nona e ottava generazione
     DDR4 senza buffer senza ECC a doppio canale
     Audio HD a 8 canali con condensatori audio di alta qualità
     GIGABYTE Esclusiva LAN per giochi 8118 con gestione della larghezza di banda
     Pronto per CEC 2019, risparmia energia con un semplice clic
     Smart Fan 5 è dotato di più sensori di temperatura e testate ibride con FAN STOP
     Tutto il nuovo APP Center GIGABYTE ™, semplice e facile da usare

• CPU
  1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
  2. L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel^® H310 Express Chipset
• Memory
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 2666/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
     * To support 2666 MHz or XMP memory, you must install an 8^th Generation Intel^® Core™ i7/i5 processor.

  (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.2.

  Maximum shared memory of 1 GB
• Audio
  1. Realtek^® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
     (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 2 x PCI Express x1 slots
     (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
• Storage Interface
  Chipset:

  1. 4 x SATA 6Gb/s connectors
• USB
  Chipset:

  1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 1 x CPU fan header
  5. 1 x system fan header
  6. 1 x front panel header
  7. 1 x front panel audio header
  8. 1 x USB 3.1 Gen 1 header
  9. 1 x USB 2.0/1.1 headers
  10. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  11. 1 x Clear CMOS jumper
• Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x HDMI port
  4. 2 x USB 3.1 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks
• I/O Controller
  1. iTE^® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @BIOS
     AutoGreen
     Cloud Station
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     Platform Power Management
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     Smart HUD
     System Information Viewer
     USB Blocker
     V-Tuner
  2. Support for Q-Flash
  3. Support for Xpress Install
• Bundled Software
  1. Norton^® Internet Security (OEM version)
  2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. Micro ATX Form Factor; 22.6cm x 17.4cm
