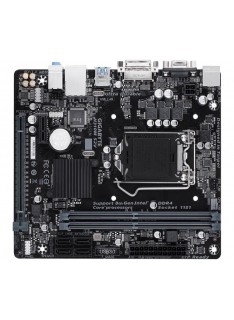

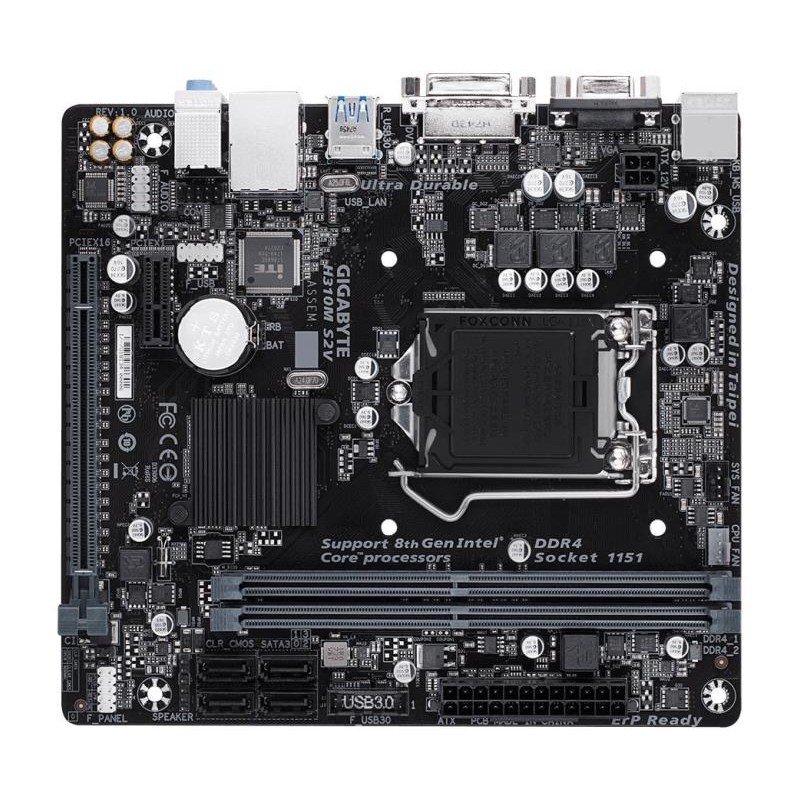

SCHEDA MADRE GA-H310M-S2V SK 1151

Supporta processori Intel® Core ™ di nona e ottava generazione
     DDR4 senza buffer senza ECC a doppio canale
     Audio HD a 8 canali con condensatori audio di alta qualità
     GIGABYTE Esclusiva LAN per giochi 8118 con gestione della larghezza di banda
     Pronto per CEC 2019, risparmia energia con un semplice clic
     Smart Fan 5 è dotato di più sensori di temperatura e testate ibride con FAN STOP
     Tutto il nuovo APP Center GIGABYTE ™, semplice e facile da usare

• Processore
  1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/ Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/ Intel^® Pentium^® processors/ Intel^® Celeron^® processors in the LGA1151 package
  2. La Cache L3 varia da CPU a CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel^® H310 Express Chipset
• Memoria
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  2. Architettura di memoria a doppio canale
  3. Support for DDR4 2666/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Supporta le memorie dotate di Profilo XMP
  7. * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

  (Please refer "Memory Support List" for more information.)
• Grafica integrata
  Integrated Graphics Processor - Intel® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.

  Maximum shared memory of 1 GB
• Audio
  1. Realtek^® ALC887 codec
  2. Audio ad alta definizione
  3. Audio a 2/4/5.1/7.1 canali
     *To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
• Slot di Espansione
  1. 1 x PCI Express x16 slot, running at x16
     (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x PCI Express x1 slot

     (Lo Slot PCI Express x1 è conforme allo standard PCI Express 2.0.)
• Interfaccia di storage
  Chipset:

  1. 4 x SATA 6Gb/s connectors
• USB
  Chipset:

  1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
• Connettori Interni I/O
  1. 1 Connettore di Alimentazione ATX a 24-pin
  2. 4 Connessioni SATA 6Gb/s
  3. 1 Connettore per Ventola della CPU
  4. 1 x Connettore per System Fan
  5. 1 x front panel header
  6. 1 Connettore per uscite Audio Frontali
  7. 1 x USB 3.1 Gen 1 header
  8. 1 x USB 2.0/1.1 headers
  9. 1 x Clear CMOS jumper
  10. 1 x 4-pin ATX 12V power connector
  11. 1 Porta seriale
  12. 1 x speaker header
  13. 1 x chassis intrusion header
• Pannello Posteriore I/O
  1. 1 Connessione per Mouse e Tastiera PS/2
  2. 1 x Porta D-Sub
  3. 1 x Porta DVI-D
  4. 2 x USB 3.1 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 Porta RJ-45
  7. 3 x audio jacks
• I/O Controller
  1. iTE® I/O Controller Chip
• Monitoraggio H/W
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
  7. * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Altre Caratteristiche
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @ BIOS ™
     Support for Cloud Station
     EasyTune
     Fast Boot
     Game Boost
     Support for On/Off Charge
     Platform Power Management
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     Smart HUD
     System Information Viewer
     USB Blocker
     V-Tuner
     Auto Green
  2. Supporta il Q-Flash
  3. Support for Xpress Install
• Bundled Software
  1. Norton® Internet Security (OEM version)
• Sistema Operativo
  1. Support for Windows 10 64-bit
• Caratteristiche Fisiche
  1. Micro ATX Form Factor; 19.0cm x 17.4cm
