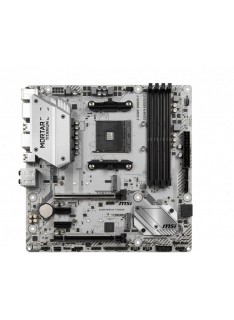

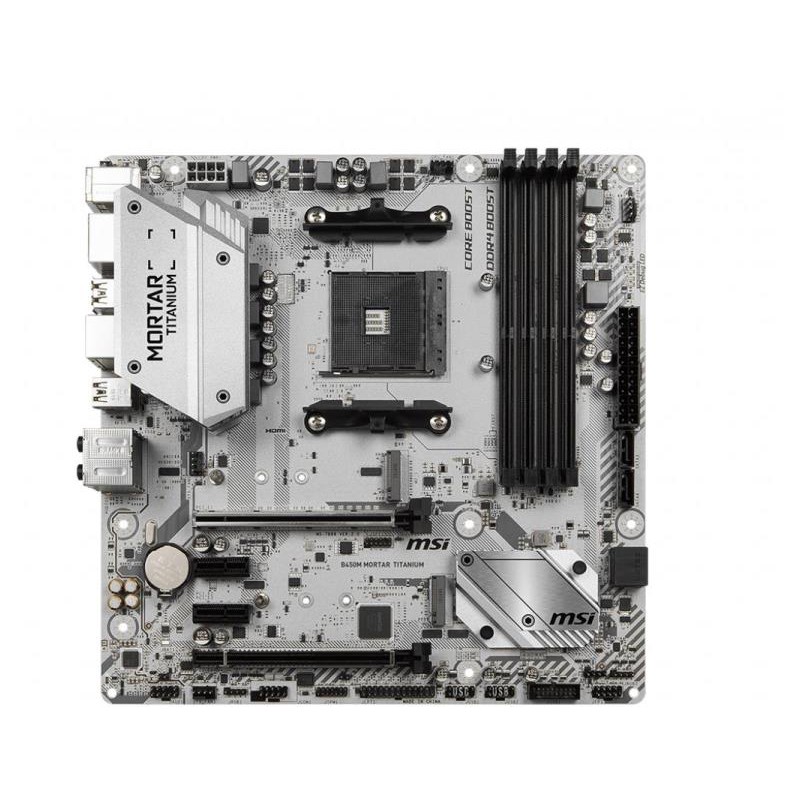

SCHEDA MADRE B450M MORTAR TITANIUM (7B89-002R) SK AM4
  • SCHEDA MADRE B450M MORTAR TITANIUM (7B89-002R) SK AM4

SCHEDA MADRE B450M MORTAR TITANIUM (7B89-002R) SK AM4

124,78 €
Tasse incluse
MSI
0000031627

Riferimenti Specifici

Scheda Madre Msi B450M Mortar Titanium - Socket AM4 - Supporto Cpu AMD Socket AM4 AMD Ryzen™ 1^ e 2^ Generation/ Ryzen - 4x DDR4 3200+ (OC) (Ryzen CPU) - DisplayPort, Hdmi - RAID 0, 1,10 - SATA3 M.2 - USB 3.1 ( Type-A) - Gigabit LAN - Audio HD 7.1 - PCI Express x16 - mATX
Quantità
Non disponibile

  • Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente) Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
  • Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente) Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
  • Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente) Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
  • Supporta AMD® Ryzen™ di 1° e 2° Generazione/ Ryzen™ con processore grafico Radeon™ Vega e AMD® A-series / Athlon™ per Socket AM4
  • Supporta Memorie DDR4-3466+(OC)
  • Design dell' Heatsink esteso: PWM esteso e design della circuiteria migliorato
  • Esperienza Gaming ultra veloce: TURBO M.2, StoreMI, AMD Turbo USB 3.1 GEN2
  • Core Boost: Layout premium e design di potenza digitale con supporto a più core
  • DDR4 Boost: Aumenta le prestazioni delle memorie DDR4 con A-XMP
  • MULTI-GPU: Con slot STEEL ARMOR PCI-E. Supporta 2-Way AMD Crossfire™
  • Mystic Light e Mystic Light Sync: Scegli tra 16.8 milioni di colori disponibili e 17 effetti in un solo clock. Sincronizza le scrisce RGB/RAINBOW e le atre soluzioni RGB.
  • Audio Boost: Premia le tue orecchie con la miiglior qualità audio possibile
  • Flash BIOS Button: Aggiorna il BIOS in pochi secondi, senza dover installare CPU RAM o VGA
  • Armi In-Game: Game Boost, GAMING Hotkey, X-Boost
  • EZ Debug LED: Semplice risoluzione dei problemi



Processor

Support AMD® Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4



Chipset

AMD® B450 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memorye
  • Supports ECC UDIMM memory (non-ECC mode)
  1. Please refer to www.msi.com for more information on compatible memory


Slots

  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
    • Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
  • 2 x PCIe 2.0 x1 slots
  1. PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot.
  2. PCI_E2 slot will be unavailable when an expansion card is installed in the PCI_E3 slot.

Onboard Graphics

  • 1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
  1. Only support when using AMD® Ryzen™ with Radeon Vega Graphics Processors
  2. Maximum shared memory of 2048 MB

Multi-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

Storage

AMD® B450 Chipset

  • 4 x SATA 6Gb/s ports
  • 1 x M.2 slot (M2_2, Key M)
    • Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices

AMD® CPU

  • 1 x M.2 slot (M2_1, Key M)*
    • Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
  1. PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot.

RAID

AMD® B450 Chipset

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe RAID

USB

AMD® B450 Chipset

  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
  • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.1 Gen1 connectors)
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

Audio

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1 x Realtek® RTL8111H-CG Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX 12V power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connector (support additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 3 x 4-pin system fan connectors
  • 2 x 5050 RGB LED strip 12V connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Serial Port connector
  • 1 x Parallel Port connector

Back panel ports

  1. Flash BIOS Button
  2. PS/2 Combo Port
  3. DisplayPort
  4. LAN Port
  5. USB 3.1 Gen2 Type A
  6. HD Audio Connectors
  7. USB 2.0 Port
  8. HDMI Port
  9. USB 3.1 Gen1
  10. USB 3.1 Gen2 Type C
  11. Optical S/PDIF OUT


Dimensions

  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
  • Micro-ATX Form Factor

Mounting

8 mounting holes

Operating System

  • Support for Windows® 10 64-bit
  • Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
