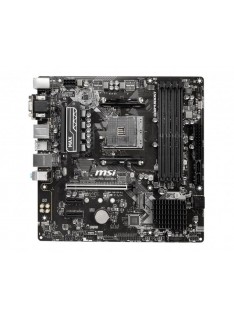

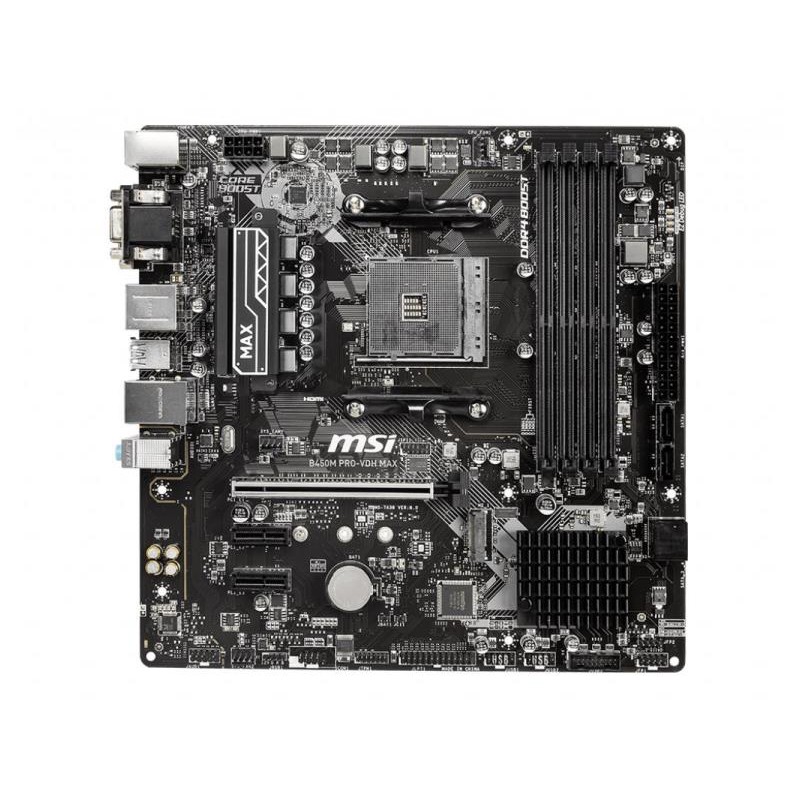

SCHEDA MADRE B450M PRO-VDH MAX (7A38-043R) SK AM4

71,70 €
Tasse incluse
MSI
0000001771

Riferimenti Specifici

Scheda Madre Msi B450M Pro-Vdh Max - Socket AM4 - Supporto Cpu AMD Socket AM4 AMD Ryzen™ 1^ e 2^ e 3^ Generation/ Ryzen - 4x DDR4 3200+ (OC) (Ryzen CPU) - Vga, Dvi, Hdmi - RAID 0, 1,10 - SATA3 M.2 - USB 3.1 - Gigabit LAN - Audio HD 7.1 - PCI Express x16 - ATX
Quantità
Non disponibile

  • Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente) Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
  • Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente) Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
  • Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente) Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)

Scheda madre AMD AM4 ispirata al design architettonico con Core Boost, DDR4 Boost, Audio Boost e Turbo M.2.

  • Supporta processori AMD Ryzen™ 1a, 2a e 3a generazione / Ryzen™ con Radeon™ Vega Graphics e AMD Ryzen™ 2a generazione con Radeon™ Graphics Desktop Processors per socket AM4 / Athlon™ con Radeon™ Vega Graphics Desktop Processors per Socket AM4
  • Supporta memoria DDR4, fino a 3466+(OC) MHz
  • Turbo M.2: l'esecuzione su PCI-E Gen3 x4 massimizza le prestazioni per gli SSD basati su NVMe.
  • DDR4 Boost: tecnologia avanzata per fornire segnali di dati puri per le migliori prestazioni di gioco.
  • Audio Boost: premia le tue orecchie con una qualità del suono da studio per un'esperienza audio davvero coinvolgente.
  • Core Boost: con layout premium e power design completamente digitale per supportare più core e fornire prestazioni migliori.
  • PCI-E Steel Armor: protezione della VGA contro il bending.



Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

See supported processors

Chipset

AMD® B450 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB1
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • For AMD Ryzen Gen3 (R5/R7/R9)
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
    • For AMD Other Processors
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Supports Dual Channel mode
  • Supports ECC UDIMM memory (non-ECC mode)
  • Support non-ECC UDIMM memory
  1. Please refer www.msi.com for more information on compatible memory.

See supported memory

Slots

  • 1 x PCIe 3.0 x16 slot
    • 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
    • Athlon™ with Radeon™ Vega Graphics support x4 mode
  • 2 x PCIe 2.0 x1 slots

Onboard Graphics

  • 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1,2<
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2<
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2<
  1. Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors
  2. Maximum shared memory of 2048 MB

Storage

AMD® B450 Chipset

  • 4 x SATA 6Gb/s ports
    • Supports RAID 0, RAID1 and RAID 10
  • 1 x M.2 slot (Key M)
    • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
    • Supports 2242/ 2260 /2280 storage devices

USB

AMD® B450 Chipset

  • 2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
  • 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

AMD® processor

  • 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Realtek® 8111H Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 2 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 1 x RGB LED strip connector
  • 1 x Clear CMOS jumper

Back panel ports

  1. PS/2
  2. VGA Port
  3. USB 2.0 Port
  4. USB 3.2 Gen1
  5. LAN Port
  6. HD Audio Connectors
  7. DVI-D Port
  8. HDMI Port


Dimensions

  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
  • m-ATX Form Factor

Mounting

8 mounting holes

Operating System

Support for Windows® 10 64-bit
