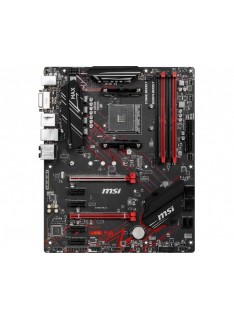

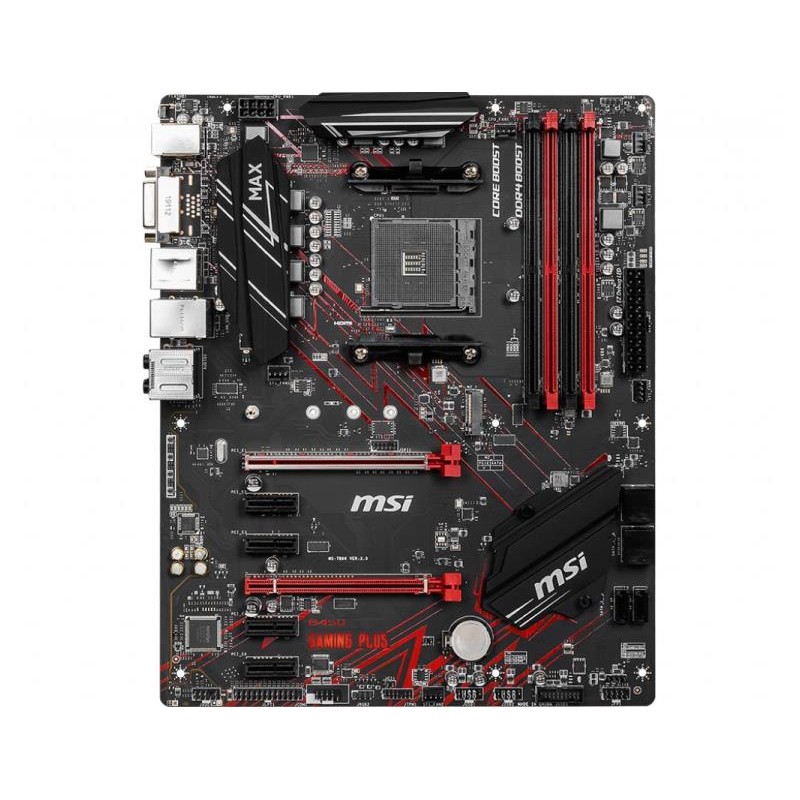

SCHEDA MADRE B450 GAMING PLUS MAX (7B86-016R) SK AM4
  • SCHEDA MADRE B450 GAMING PLUS MAX (7B86-016R) SK AM4
  • SCHEDA MADRE B450 GAMING PLUS MAX (7B86-016R) SK AM4
  • SCHEDA MADRE B450 GAMING PLUS MAX (7B86-016R) SK AM4

SCHEDA MADRE B450 GAMING PLUS MAX (7B86-016R) SK AM4

95,62 €
Tasse incluse
MSI
0000034471

Riferimenti Specifici

Scheda Madre Msi B450 Gaming Plus Max - Socket AM4 - Supporto Cpu AMD Socket AM4 AMD Ryzen™ 1, 2 e 3 Generation/ Ryzen - 4x DDR4 3200+ (OC) (Ryzen CPU) - Dvi, Hdmi - RAID 0, 1,10 - SATA3 M.2 - USB 3.2 - Gigabit LAN - Audio HD 7.1 - PCI Express x16 - ATX
Quantità
Non disponibile

  • Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente) Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
  • Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente) Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
  • Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente) Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)

Soddisfacendo i gamers con ciò di cui hanno realmente bisogno, B450 GAMING PLUS MAX è dotata di Core Boost, Turbo M.2, DDR4 Boost, Connettore USB 3.2 Gen2

  • Supporta processori AMD Ryzen™ 1a, 2a e 3a generazione / Ryzen™ con Radeon™ Vega Graphics e AMD Ryzen™ 2a generazione con Radeon™ Graphics Desktop Processors per socket AM4 / Athlon™ con Radeon™ Vega Graphics Desktop Processors per Socket AM4
  • Supporta memorie DDR4 fino a 4133(OC) MHz
  • Esperienza Gaming ultra veloce: TURBO M.2, StoreMI, AMD Turbo USB 3.1 GEN2
  • Core Boost: Layout premium e design di potenza digitale con supporto a più core
  • DDR4 Boost: Aumenta le prestazioni delle memorie DDR4 con A-XMP
  • Audio Boost: Premia le tue orecchie con la miiglior qualità audio possibile
  • Tasto Flash BIOS: Basta usare una chiave USB per eseguire il flashing di qualsiasi BIOS in pochi secondi, senza installare CPU, memoria o scheda grafica



Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4



Chipset

AMD® B450 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • For AMD Ryzen Gen3 (R5/R7/R9)
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)
    • For AMD Other CPU
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)


Slots

  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
    • Athlon™ with Radeon™ Vega Graphics support x4 mode
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
  • 4 x PCIe 2.0 x1 slots
  1. PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.

Onboard Graphics

  • 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
  1. Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors
  2. Maximum shared memory of 2048 MB

Multi-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

Storage

AMD® CPU

  • 2 x SATA 6Gb/s ports
  • 1 x M.2 slot (Key M)
    • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices

AMD® B450 Chipset

  • 4 x SATA 6Gb/s ports
  1. SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

RAID

AMD® B450 Chipset

  • Supports RAID 0, RAID1 and RAID 10 for SATA storage devices

USB

AMD® B450 Chipset

  • 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
  • 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU

  • 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Realtek® 8111H Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump-fan connector
  • 4 x 4-pin system fan connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 2 x 5050 RGB LED strip 12V connectors

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. USB 3.2 Gen1
  3. LAN Port
  4. HD Audio Connectors
  5. Flash BIOS Button
  6. USB 2.0 Ports
  7. DVI-D Port
  8. HDMI Port
  9. USB 3.2 Gen2


Dimensions

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
