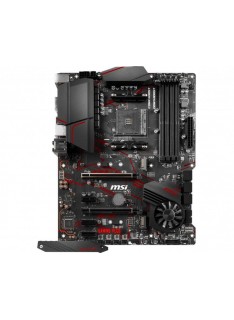

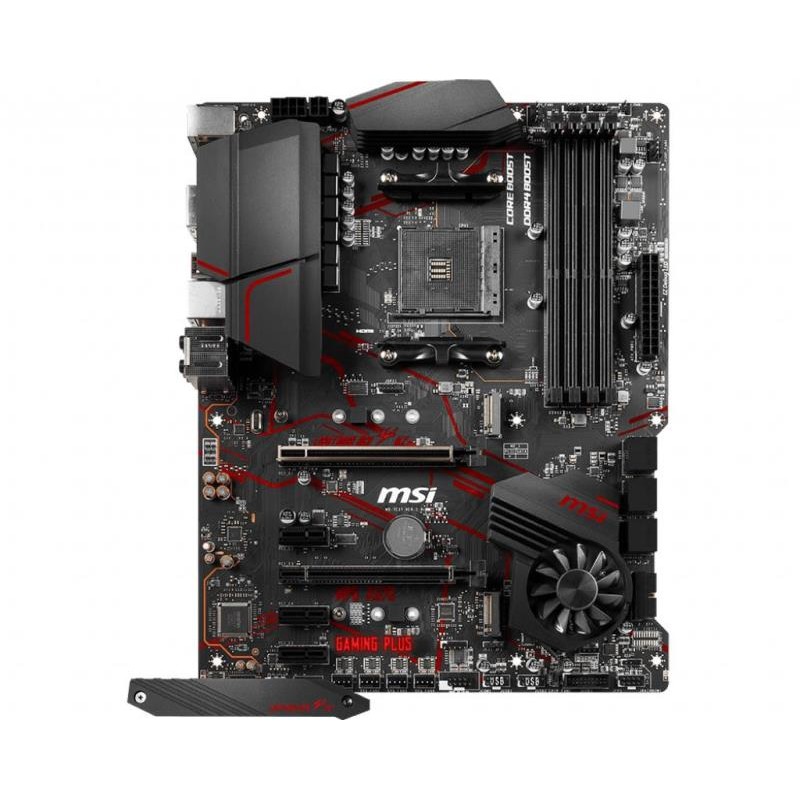

Soddisfa i giocatori con ciò di cui hanno realmente bisogno: MPG X570 Gaming Plus è dotato di design heatsink esteso, Core Boost, Lightning Gen4, M.2 Shield FROZR, Turbo USB e Dragon Center.
Supporta processori AMD Ryzen™ 2a e 3a generazione / Ryzen™ con Radeon™ Vega Graphics e AMD Ryzen™ 2a generazione con Radeon™ Graphics Desktop Processors per socket AM4.
Supporta 4 DIMMs, memoria Dual Channel DDR4, fino a 4400+(OC) MHz.
Soluzione Lightning Gen 4: la soluzione PCI-e M.2 Gen4 più innovativa con larghezza di banda fino a 64 GB/s per la massima velocità di trasferimento e prestazioni.
Mystic Light: 16.8 millioni di colori / 29 effetti controllabili in un click. MYSTIC LIGHT EXTENSION supporta sia le strisce LED Rainbow che RGB.
Frozr Heatsink Design : progettato con ventola e doppi cuscinetti a sfera per fornire le migliori prestazioni ai giocatori e ai prosumer più appassionati.
Set Core Power Free: Core Boost, pin connettore di potenza CPU 8+4, DDR4 Boost
Audio Boost 4 con NAHIMIC: premia le tue orecchie con una qualità del suono da studio.
AMD Turbo USB 3.2 Gen2: alimentato dal controller AMD USB 3.2 Gen2, garantisce una connessione ininterrotta con velocità USB sempre più elevate.
Dragon Center: Un software nuovo di zecca che integra tutti gli strumenti MSI come GAME MODE, VOICE BOOST, LIVE UPDATE, AMBIENT LINK con un'interfaccia utente user friendly.
Processor
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
Chipset
AMD® X570 Chipset
Memory
4x DDR4 memory slots, support up to 128GB
3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Please refer www.msi.com for more information on compatible memory.
Expansion Slots
1x PCIe 4.0/3.0 x16 slot (PCI_E1)
3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® Processor
2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Audio
Realtek® ALC1220 Codec
7.1-Channel High Definition Audio
Supports Optical S/PDIF output
LAN
1x Realtek® 8111H Gigabit LAN Controller
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x TPM module connector
1x Serial port connector
1x Clear CMOS jumper
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
4x EZ Debug LEDs
Back panel ports
Keyboard / Mouse
USB 3.2 Gen1 Type-A
LAN
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen2 Type-A + C
USB 3.2 Gen1 Type-A
Optical S/PDIF out
Dimensions
12 in. x 9.6 in. (30.4 cm x 24.3 cm)
ATX Form Factor
Mounting
9 mounting holes
Operating System
Support for Windows® 10 64-bit
