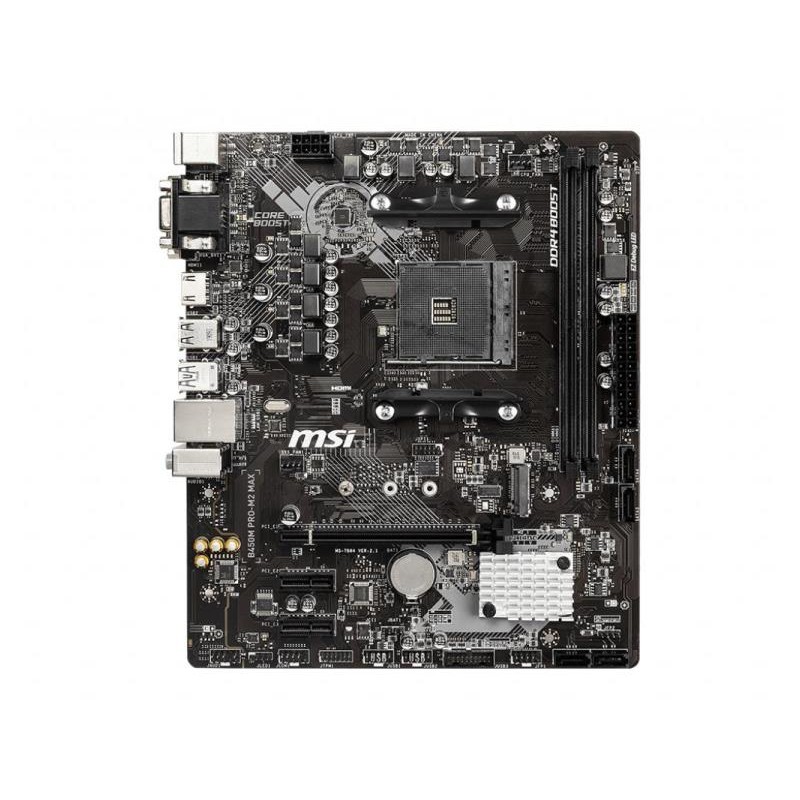

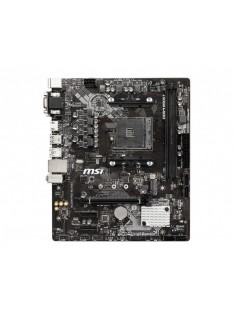

SCHEDA MADRE B450M PRO-M2 MAX (7B84-017R) SK AM4

71,27 €
Tasse incluse
MSI
0000037205

Riferimenti Specifici

Scheda Madre Msi B450M PRO-M2 MAX - Socket AM4 - Supporto Cpu AMD Socket AM4 AMD Ryzen™ 1^, 2^ e 3 Generation/ Ryzen - 2x DDR4 3200+ (OC) (Ryzen CPU) - Vga, Dvi, Hdmi - RAID 0, 1,10 - SATA3 M.2 - USB 3.1 ( Type-A) - Gigabit LAN - Audio HD 7.1 - PCI Express x16 - mATX
Quantità
Non disponibile

  • Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente) Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
  • Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente) Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
  • Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente) Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)

Scheda madre AMD AM4 ispirata al design architettonico, con Core Boost, DDR4 Boost, Turbo M.2

  • Supporta processori AMD Ryzen™ 1a, 2a e 3a generazione / Ryzen™ con Radeon™ Vega Graphics e AMD Ryzen™ 2a generazione con Radeon™ Graphics Desktop Processors per socket AM4 / Athlon™ con Radeon™ Vega Graphics Desktop Processors per Socket AM4
  • Supporta memorie DDR4 fino a 3466+(OC) MHz
  • Turbo M.2: l'esecuzione con PCI-E Gen3 x4 massimizza le prestazioni degli SSD basati su NVMe.
  • DDR4 Boost: Aumenta le prestazioni delle memorie DDR4
  • Audio Boost: Premia le tue orecchie con la miglior qualità audio possibile
  • EZ Debug LED: Semplice risoluzione dei problemi
  • Core Boost: Layout premium e design di potenza digitale con supporto a più core
  • Slot PCI-E Steel Armor: Protezione della VGA contro il bending



Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

Chipset

AMD® B450 Chipset

Memory

  • 2 x DDR4 memory slots, support up to 32GB
    • Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC
    • For AMD Ryzen Gen3 (R5/R7/R9)
      • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz by A-XMP OC mode1
    • For AMD Other CPU
      • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC mode
  • Dual channel memory architecture
  • Supports ECC UDIMM memory (non-ECC mode)
  • Support non-ECC UDIMM memory
  1. Please refer www.msi.com for more information on compatible memory.


Slots

  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors
    • Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors
    • Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
  • 2 x PCIe 2.0 x1 slots

Onboard Graphics

  • 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1,2
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@30Hz1,2
  1. Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Processorss
  2. Maximum shared memory of 2048 MB

Storage

AMD® B450 Chipset

  • 4 x SATA 6Gb/s ports
    • Supports RAID 0, RAID1 and RAID 10
  • 1 x M.2 slot (Key M)
    • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices

USB

AMD® B450 Chipset

  • 2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
  • 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AMD® processor

  • 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC887 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Realtek® 8111H Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Serial port connector
  • 1 x LED strip connector
  • 1 x Clear CMOS jumper

Back panel ports

  1. Mouse
  2. VGA Port
  3. USB 2.0
  4. LAN Port
  5. HD Audio Connectors
  6. Keyboard
  7. DVI-D Port
  8. HDMI Port
  9. USB 3.2 Gen1


Dimensions

  • 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
  • m-ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
