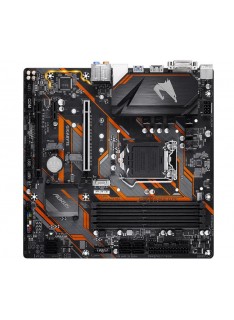

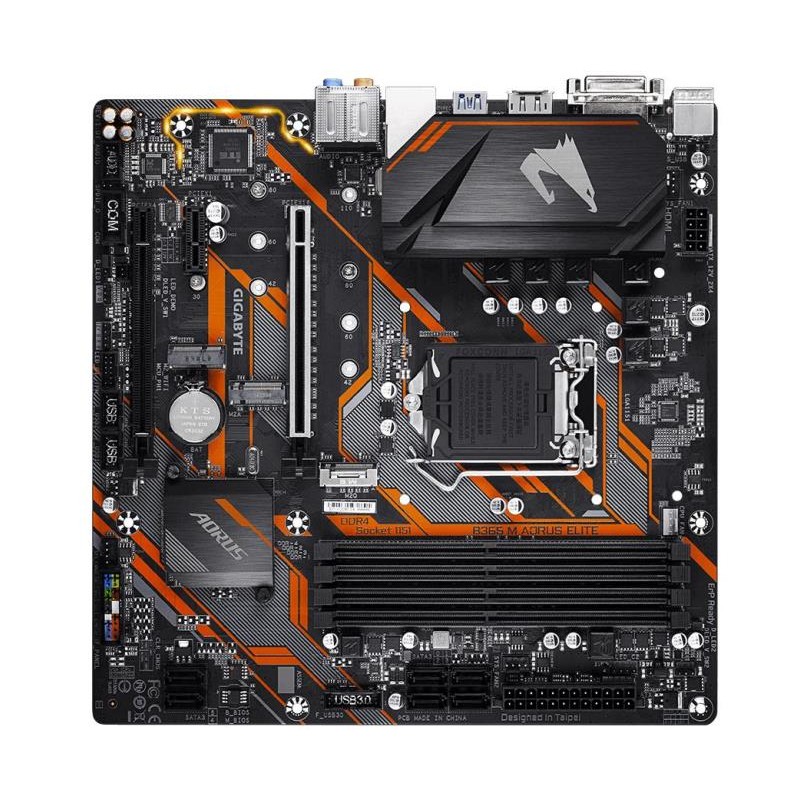

SCHEDA MADRE GA-B365M-AORUS-ELITE SK 1151
  • SCHEDA MADRE GA-B365M-AORUS-ELITE SK 1151

SCHEDA MADRE GA-B365M-AORUS-ELITE SK 1151

102,60 €
Tasse incluse
GIGABYTE
0000040262

Riferimenti Specifici

Scheda madre Gigabyte B365 M AORUS ELITE - Supporto processori Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® - Ram 4x DDR4 2666/2133 Mhz - Dvi, DisplayPort, Hdmi - 4x Usb3.0 / 2x Usb2.0 - GLan - Audio HD - Micro-ATX
Quantità
Non disponibile

  • Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente) Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
  • Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente) Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
  • Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente) Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
Scheda madre Intel B365 AORUS con RGB Fusion 2.0 e Digital LEDs, Intel GbE LAN with cFosSpeed, Dual M.2 slots, Ultra Durable PCIe Armor, Anti-Sulfur Resistor, Smart Fan 5, DualBIOS™, CEC 2019 ready

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New Hybrid Digital PWM Design
  • M.2 Socket 1 slot for WIFI upgradable
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4/X4 & SATA interface
  • RGB FUSION 2.0 with Digital LED Light Show design
  • Intel® USB 3.1 Gen1 USB Type-C™
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • Intel® Optane™ Memory Ready



  • Processore
    1. Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
    2. La Cache L3 varia da CPU a CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® B365 Express Chipset
  • Memoria
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    2. Architettura di memoria a doppio canale
    3. Support for DDR4 2666/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Supporta le memorie dotate di Profilo XMP
    7. * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.
    ((Per maggiori informazioni fare riferimento alla Lista di memorie compatibili))
  • Grafica integrata
    Integrated Graphics Processor - Intel® HD Graphics support:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    3. * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
    4. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    5. * Support for HDMI 1.4 version and HDCP 2.2.
    Support for up to 3 displays at the same time
    Maximum shared memory of 1 GB
  • Audio
    1. Realtek® ALC892 codec
    2. Audio ad alta definizione
    3. Audio a 2/4/5.1/7.1 canali
    4. Supporta uscite S/PDIF
  • LAN
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Slot di Espansione
    1. 1 Slot PCI Express 16X,
      operante a 16X

      *Per migliori Performance, se solo una Scheda Video PCI è installata,
      assicurati che questi sia inserita in uno Slot PCI Express 16X.
    2. 1 x Slot PCI Express x16, funzionante a x4 (PCIEX4)
    3. 1 x PCI Express x1 slot
    4. (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    5. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
  • Interfaccia di storage
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
    2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A)
    3. 6 x SATA 6Gb/s connectors
    4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    5. * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
  • Tecnologia Multi GPU
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • USB
    Chipset:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
    2. 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Connettori Interni I/O
    1. 1 x 24-pin ATX main power connector
    2. 1 Connettore di Alimentazione ATX ad 8-pin
    3. 1 Connettore per Ventola della CPU
    4. 3 x system fan headers
    5. 2 x Addressable LED strip headers
    6. 2 x Addressable LED strip power select jumpers
    7. 2 x RGB LED strip headers
    8. 6 x SATA 6Gb/s connectors
    9. 2 x M.2 Socket 3 connectors
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x S/PDIF Out header
    13. 1 x USB 3.1 Gen 1 header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      La funzione TPM è opzionale in base alla regolamentazione dei vari stati
    16. 1 Porta seriale
    17. 1 x Clear CMOS jumper
  • Pannello Posteriore I/O
    1. 1 Connessione per Mouse e Tastiera PS/2
    2. 1 x Porta DVI-D
    3. 1 x DisplayPort
    4. 1 Porta HDMI
    5. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
    6. 3 x USB 3.1 Gen 1 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 Porta RJ-45
    9. 6 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • Monitoraggio H/W
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
    7. * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Altre Caratteristiche
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @ BIOS ™
      Auto Green
      Support for Cloud Station
      EasyTune
      Easy RAID
      Fast Boot
      Game Boost
      Supporto alla tecnologia ON/OFF Charge
      Platform Power Management
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      Smart Survey
      System Information Viewer
      USB Blocker
    2. Supporta il Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Sistema Operativo
    1. Support for Windows 10 64-bit
  • Caratteristiche Fisiche
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
