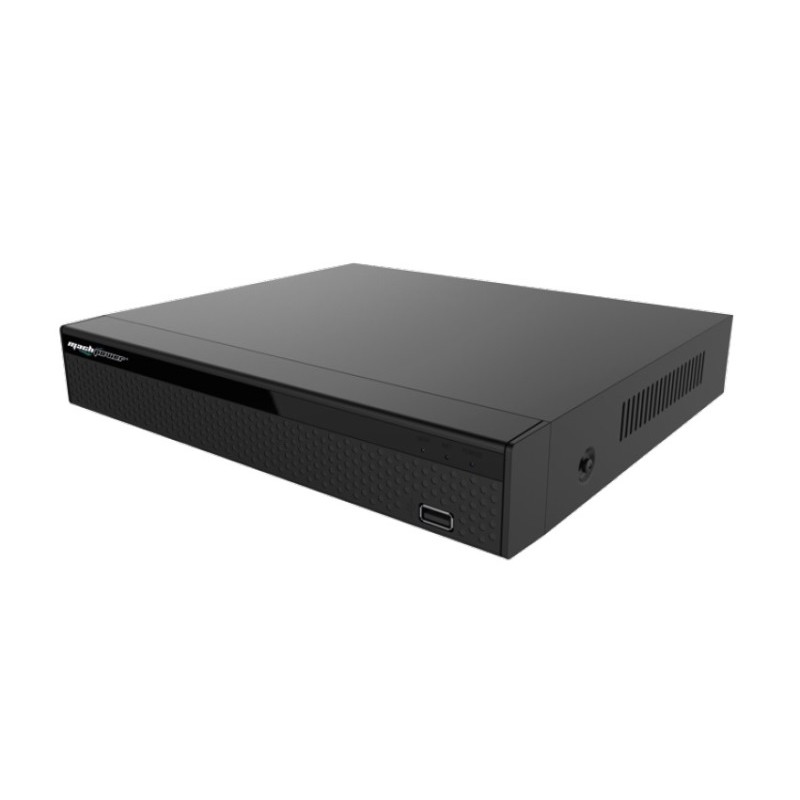

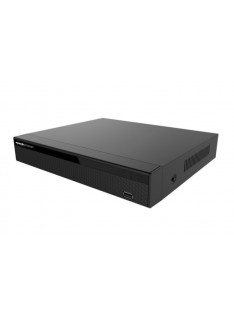

SISTEMA DI SORVEGLIANZA NVR 16 CANALI (VS-NVR16C5M-289
74,39 €
Tasse incluse
Sistema di videosorveglianza NVR VS-NVR16C5M-289 - 16CH H.265+
-
Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
-
Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
-
Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
| System | |
| Main Processor | ARM Cortex A7 Processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 16CH (2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
| Output | 1 VGA, 1 HD |
| Audio | |
| Input | / |
| Output | 1Port 3.5mm(Linear, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Audio Compression standard | G711u, G711a, G726 |
| Alarm | |
| Sensor Input | No |
| Output | No |
| Motion Detection | 16 Channel, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
| Display | |
| HD Output1 | Resolution:4K (3840 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, |
| 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| HD Output2 | / |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, |
| 1024 × 768/60Hz | |
| Display Split | 16CHxD1/9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/ |
| 1CHx5MP | |
| Digital Zoom | Yes |
| OSD | Camera Title, Time, Recording, Motion Detection |
| Recording | |
| Video Compression | H265/H264/H265+/H264+ |
| Resolution | 5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080), |
| 960P(1280x960),720P(1280×720),D1 (720×576/720×480) | |
| Record Rate | PAL :5MP@16×25fp,4MP@16x25fp,3MP@16×25fp,1080P@16×25fp, |
| 960P@16×25fp,720P@16×25fp, D1@16×25fp; | |
| NTSC: 5MP@16×30fp,4MP@16×30fp,3MP@16×30fp,1080P@16×30fp, | |
| 960P@16×30fp, 720P@16×30fp, D1@16×30fp | |
| Record Mode | Manual/Timer/Motion Detection |
| Playback & Backup | |
| Local Sync Playback | 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, |
| 4CH 960P@30fps, 4CH 720P@30fps | |
| Decode Capability | 4CH 1080P@20fps |
| Remote Sync Playback | Yes |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Fast Play, Digital Zoom |
| Backup Mode | USB Device/Network |
| Network | |
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface |
| Incoming Bandwidth | 80MB |
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, |
| RTSP, RTCP, P2P | |
| Onvif Version | Support Onvif 2.4 |
| Web Browser | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) |
| CMS Software | Support Windows 7/ Windows 8/Windows 10 |
| Cloud Support(P2P) | Yes |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| PoE | / |
| Wi-Fi | / |
| Storage | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 8TB capacity |
| eSATA | / |
| General | |
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, |
| Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, | |
| Romanian, Korean, Dutch, Greek | |
| USB Interface | 2 USB 2.0 Interfaces |
| RS485 | / |
| Power Supply | DC12V/2A |
| Working Environment | -10~55°C/10~90% |
| Dimension (mm) | 260(W) x 215(D) x 43(H) |
| Weight (Kg) | 2.0 Kg (Senza HDD) |
Sistema di videosorveglianza NVR VS-NVR16C5M-289 - 16CH H.265+
