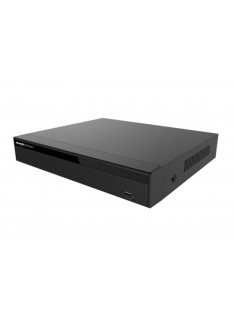

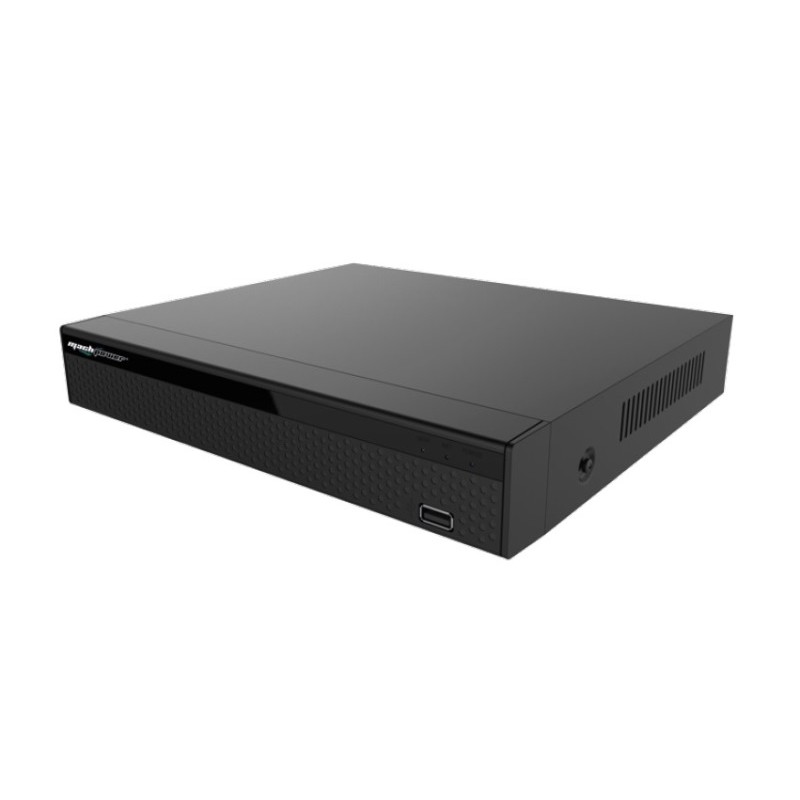

SISTEMA DI SORVEGLIANZA XHVR 8 CANALI 5IN1 (VS-XHVR8C5M-250)
121,61 €
Tasse incluse
Sistema di videosorveglianza XHVR VS-XHVR8C5M-250 - 5in1 8CH AHD H.265+
-
Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
-
Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
-
Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
| System | ||
| Main Processor | HI3521D | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | Normal Mode: Analog: 8 x (AHD/TVI/CVI:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; | |
| AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H) | ||
| Lite Mode: Analog: 8 x (AHD/TVI/CVI: 1080P/720P; Analog: 960H) | ||
| Analog+Network:6 x Analog(1080P)+3 x network(Max 8MP), 4 x Analog(1080P) | ||
| +5 x network(Max 8MP),2 x Analog(1080P)+7 x network(Max 8MP) | ||
| Network:16 x 8MP/5MP/4MP/3MP/1080P/960P/720P | ||
| (Total incoming bandwidth ≤80M) | ||
| Input | 8CH BNC | |
| Signal Type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network | |
| Output | 1 HD,1 VGA | |
| Audio | ||
| Input | 4 Channel, RCA | |
| Two-way Audio | No | |
| Output | 1 Channel, RCA | |
| Alarm | ||
| Sensor Input | No | |
| Output | No | |
| Motion Detection | 4 Channel(max 16 Channel in pure network mode) | |
| Trigger Events | Recording, Email, Screen tips, Buzzer, Push notifications(motion detection) | |
| Email Alarm | Send Image to The Designated E-mail | |
| PTZ | ||
| Interface | RS485 | |
| Protocol | Pelco-D, Pelco-P | |
| Baud Rate | 110~921600 | |
| Address | 0~255 | |
| Display | ||
| VGA | 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768 /60Hz | |
| HD Output | 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, | |
| 1280 × 720/60Hz,1024 × 768/60Hz | ||
| Display Split | 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel | |
| Privacy Masking | 3 Rectangular Zones (Each camera) | |
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording | |
| Recording | ||
| Video Compression | H.265/H.265+/H.264/H.264+ | |
| Audio Compression | G.711u | |
| Resolution | 5MP(2592×1944),8MP_LITE(1920×2160),5MP_HALF(1296×1944), | |
| 4MP(2560×1440),4MP_HALF(1280×1440),3MP(2048×1536), | ||
| 1080P(1920× 1080),720P(1280×720),960H(P:960×576/N:960×480) | ||
| Video Quality | worst/worse/ordinary/well/best | |
| Record Rate | Normal Mode: | |
| Analog: PAL:8MP_LITE(1920×2160 8 x 8fps),5MP(2592×1944 8 x 6fps), | ||
| 5MP_LITE(1296×1944 8 x 10fps),4MP(2560×1440 8 x 8fps), | ||
| 4MP_LITE(1280×1440 8 x 15fps),3MP(2048×1536 8 x 9fps),1080P | ||
| (1920x1080 8 x 15fps),720P(1280×720 8 x 25fps), 960H(960×576 8 x 25fps) | ||
| NTSC:8MP_LITE(1920×2160 8 x 8fps),5MP(2592×1944 8 x 6fps), | ||
| 5MP_LITE(1296×1944 8 x 10fps),4MP(2560×1440 8 x 8fps),4MP_LITE | ||
| (1280×1440 8 x 15fps),3MP(2048×1536 8 x 9fps),1080P(1920x1080 8 x 15fps) | ||
| 720P(1280×720 8 x 30fps), 960H(960×480 8 x 30fps) | ||
| Lite Mode: | ||
| Analog: Half 1080P(960x1080 8 x 25fps),720P(1280×720 8 x 25fps), | ||
| 960H(P:960×576 8 x 25fps/N:960×480 8 x 30fps) | ||
| Pure IP(H.265): | ||
| PAL :4k@8x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, | ||
| 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps | ||
| NTSC:4k@8x30fps, 5MP@12x30fps,4MP@16x30fps, 3MP@16x30fps, | ||
| 1080P@16x30fps, 960P@16x30fps, 720P@16x30fps, D1@16x30fps | ||
| Record Mode | Manual\Timer\Motion Detection | |
| Playback & Backup | ||
| Decode Capability | 4CH 1080P@30fps | |
| Sync Playback | Pure Analog: 8CH 5M@6fps, 4CH 8M_Lite@8fps, 8CH 4M@8fps, | |
| 8CH 3M@9fps, 8CH 1080P@15fps, 8CH 1080N@25fps | ||
| Mix Mode: 4CH 5M@6fps, 4CH 4M@8fps, 4CH 3M@9fps, 4CH 1080P@15fps, | ||
| 1CH 8MP 30fps, 2CH 5MP 30fps, 2CH 4MP @30fps, 2CH 3MP@30fps | ||
| Pure IPC: 1CH 4K@30fps, 2CH 5MP@30fps, 3CH 4MP@30fps, | ||
| 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps | ||
| Remote Playback | 4 Channel / 1 Channel | |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection | |
| Playback Functions | Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen | |
| Smart Phone Playback | 4 Channel | |
| Backup Mode | USB Device(with fomat FAT 32 )/Network/FTP | |
| Network | ||
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface | |
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, | |
| RTSP, RTCP | ||
| DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, | |
| SMART-EYES, ZEBEYE | ||
| Web Browser | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) | |
| CMS Software | Support Windows 7/ Windows 8/Windows 10 | |
| Extra Stream | CIF(1~30fps) | |
| Smart Phone | iPhone, ipad, Android ,Android pad | |
| Hard Disk Driver | ||
| Interface Type | 1 SATA Interface | |
| Capacity | 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB) | |
| General | ||
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, | |
| Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, | ||
| Romanian, korean, Dutch, Greek | ||
| UTC Control | Yes | |
| USB Interface | 2 USB 2.0 Interfaces | |
| Power consumption | DC 12V ≤6W (Without Hard Disk) | |
| Working Environment | -10~55°C/10~90% | |
| Dimension (mm) | 260(W) x 215(D) x 43(H) | |
| Weight (Kg) | 2.0 (Senza HDD) | |
Sistema di videosorveglianza XHVR VS-XHVR8C5M-250 - 5in1 8CH AHD H.265+
