SISTEMA DI SORVEGLIANZA XHVR 8 CANALI 5IN1 (VS-XHVR8C4K-279)
352,46 €
Tasse incluse

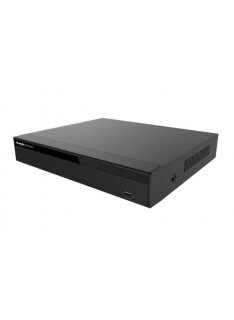

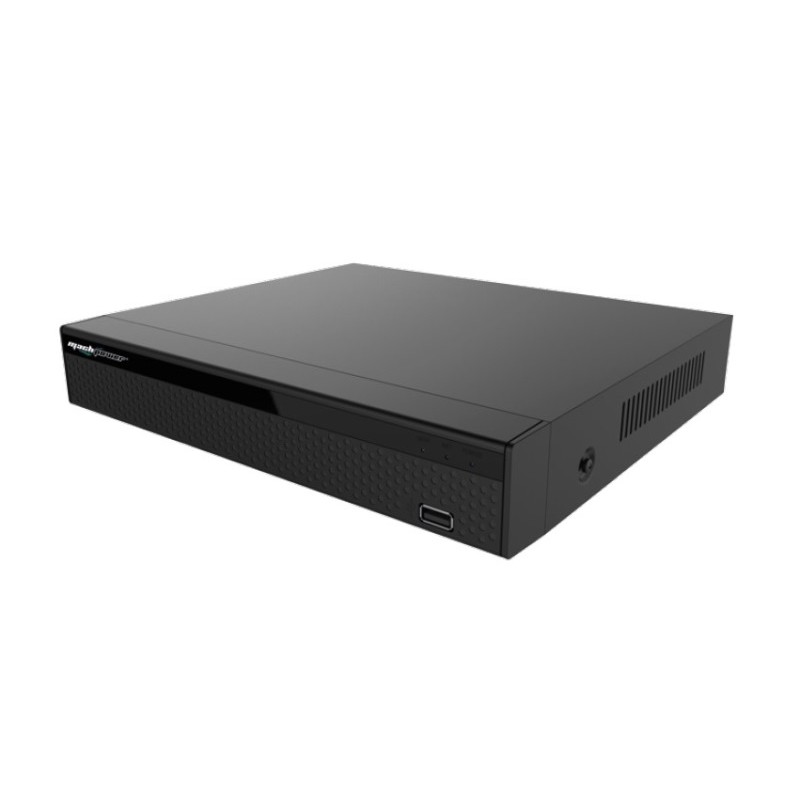

Sistema di videosorveglianza XHVR VS-XHVR8C4K-279 - 5in1 8CH AHD H.265+
-
Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
-
Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
-
Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
| System | ||
| Main Processor | HI3531D | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | Analog:8 x (TVI/AHD: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; | |
| AHD/TVI/CVI: 1080P/720P; Analog: 960H) | ||
| Analog+Network:2 x Analog+14 x network(Max 8MP),4 x Analog+12 x network | ||
| (Max 8MP), 6 x Analog+10 x network(Max 8MP) | ||
| Network:32 x network(Max 8MP)(Total incoming bandwidth ≤160M) | ||
| Input | 8CH BNC | |
| Signal Type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network | |
| Output | 1 HD,1 VGA | |
| Audio | ||
| Input | 6 Channel, RCA | |
| Two-way Audio | No | |
| Output | 1 Channel, RCA | |
| Alarm | ||
| Sensor Input | 4 Channel | |
| Output | 1 Channel | |
| Motion Detection | 8 Channel(max 32 Channel in pure network mode) | |
| Trigger Events | Recording, Email, Screen tips, Buzzer, Push notifications(motion detection) | |
| Email Alarm | Send Image to The Designated E-mail | |
| PTZ | ||
| Interface | RS485 | |
| Protocol | Pelco-D, Pelco-P | |
| Baud Rate | 110~921600 | |
| Address | 0~255 | |
| Display | ||
| VGA | 1920 × 1080P/60Hz, 1280 × 1024/60Hz | |
| HD Output | 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz | |
| Display Split | 36 Channel / 25 Channel / 16 Channel / 9 Channel / 8 Channel / 4 Channel / | |
| 1Channel | ||
| Privacy Masking | 3 Rectangular Zones (Each camera) | |
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording | |
| Recording | ||
| Video Compression | H.265/H.265+/H.264/H.264+ | |
| Audio Compression | G.711u | |
| Resolution | 8MP(3840×2160), 5MP(2592×1944),4MP(2560×1440),3MP(2048×1536), | |
| 1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480) | ||
| Video Quality | worst/worse/ordinary/well/best | |
| Record Rate | Analog: PAL: 8MP(3840x2160 8x12fps),5MP(2592×1944 8x12fps), | |
| 4MP(2560×1440 8x25fps),3MP(2048×1536 8x18fps);1080P(1920x1080 | ||
| 8x25fps),720P(1280×720 8x25fps), 960H(960×576 8x25fps) | ||
| NTSC:8MP(3840x2160 8x15fps), 5MP(2592×1944 8x20fps), | ||
| 4MP(2560×1440 8x30fps),3MP(2048×1536 8x18fps),1080P(1920x1080 | ||
| 8x30fps),720P(1280×720 8x30fps), 960H(960×480 8x30fps) | ||
| Pure IP(H.265): PAL:8MP@17×25fps,5MP@26×25fps,4MP@32x25fps, | ||
| 3MP@32×25fps,1080P@32×25fps,960P@32×25fps,720P@32×25fps, | ||
| D1@32×25fps NTSC: 8MP@17×30fps,5MP@26×30fps,4MP@32×30fps, | ||
| 3MP@32×30fps,1080P@32×30fps, 960P@32×30fps, 720P@32×30fps, | ||
| D1@32×30fps | ||
| Record Mode | Manual\Timer\Motion Detection | |
| Playback & Backup | ||
| Decode Capability | 9CH 720P@30fps | |
| Sync Playback | Pure Analog: 2CH 8MP@15fps, 3CH 5M@20fps, 4CH 4M@30fps, | |
| 5CH 3M@18fps, 8CH 1080p@30fps | ||
| Mix Mode: 2CH 8MP@30fps, 3CH 5MP@20fps, 4CH 4M@30fps, | ||
| 4CH 3MP@18fps, 4CH 1080P@30fps | ||
| Pure IPC: 2CH 8MP@30fps, 3CH 5M@30fps, 4CH 4M@30fps, | ||
| 6CH 3M@30fps, 9CH 1080P@30fps, 9CH 960P@30fps, 9CH 720P@30fps | ||
| Remote Playback | 4 Channel / 1 Channel | |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection | |
| Playback Functions | Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen | |
| Smart Phone Playback | 4 Channel | |
| Backup Mode | USB Device(with fomat FAT 32 )/Network/FTP | |
| Network | ||
| Interface | 1 RJ45 10M/100M/1000M Adaptive Ethernet Interface | |
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, | |
| RTSP, RTCP | ||
| DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, | |
| SMART-EYES, ZEBEYE | ||
| Web Browser | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) | |
| CMS Software | Support Windows 7/ Windows 8/Windows 10 | |
| Extra Stream | D1/CIF(1~30fps) | |
| Smart Phone | iPhone, ipad, Android ,Android pad | |
| Hard Disk Driver | ||
| Interface Type | 2 SATA Interface | |
| Capacity | 2 SATA Hard Disk (2.5"/3.5" SATA, Up to 16TB) | |
| General | ||
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, | |
| Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, | ||
| Romanian, korean, Dutch, Greek | ||
| UTC Control | Yes | |
| USB Interface | 2 USB 2.0 Interfaces | |
| Power consumption | DC 12V ≤6W (Without Hard Disk) | |
| Working Environment | -10~55°C/10~90% | |
| Dimension (mm) | 310(W) x 295(D) x 46(H) | |
| Weight (kg) | 3.5 (Senza HDD) | |
Sistema di videosorveglianza XHVR VS-XHVR8C4K-279 - 5in1 8CH AHD H.265+
