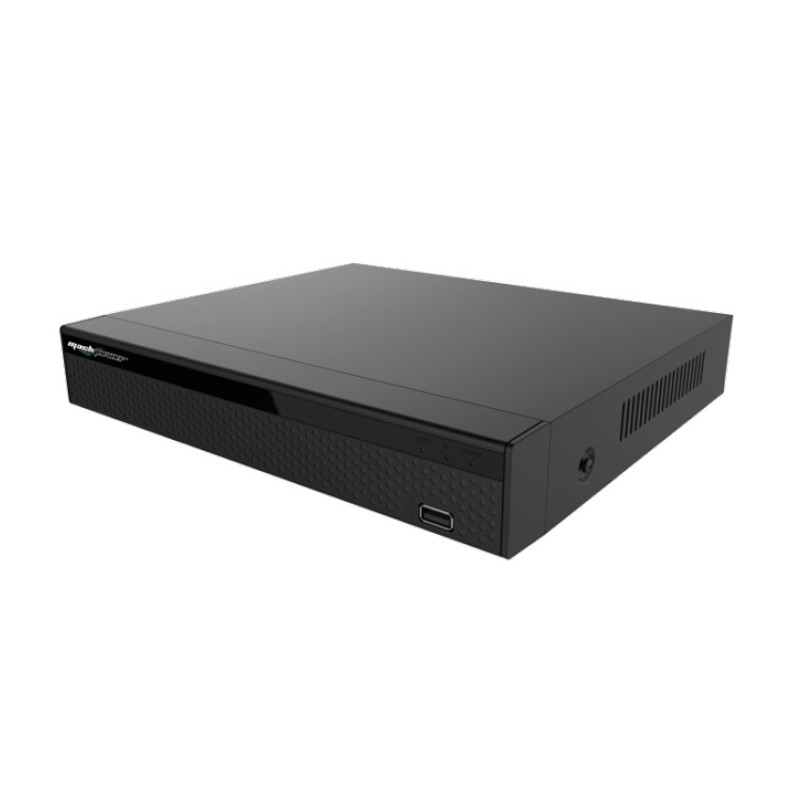

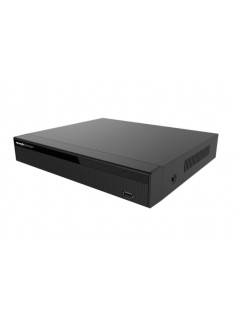

SISTEMA DI SORVEGLIANZA NVR 9 CANALI 4K (VS-NVRP4C5M-287)
117,49 €
Tasse incluse
Sistema di videosorveglianza NVR VS-NVRP4C5M-287 - 9CH HD H.265+ 4K
-
Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
-
Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
-
Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
| System | ||
| Main Processor | ARM Cortex A7 Processor | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | 9CH (2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) | |
| Output | 1 VGA, 1HD | |
| Audio | ||
| Input | / | |
| Output | 1 Port 3.5mm(Linear, 1kΩ) | |
| Audio Bit Rate | 64kbps | |
| Audio Compression standard | G711u, G711a, ADPCM_DVI4 | |
| Alarm | ||
| Sensor Input | No | |
| Output | No | |
| Motion Detection | 9 Channel, MD Zones: 396 (22 × 18) | |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output | |
| Display | ||
| HD Output1 | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| HD Output2 | / | |
| VGA | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Display Split | 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP | |
| Digital Zoom | Yes | |
| OSD | Camera Title, Time, Recording, Motion Detection | |
| Recording | ||
| Video Compression | H265/H264/H265+/H264+ | |
| Resolution | 5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080), | |
| 960P(1280x960),720P(1280×720),D1 (720×576/720×480) | ||
| Record Rate | PAL :5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp, | |
| 720P@9×25fp, D1@9×25fp | ||
| NTSC: 5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, | ||
| 960P@9×30fp, 720P@9×30fp, D1@9×30fp | ||
| Record Mode | Manual\Timer\Motion Detection | |
| Playback & Backup | ||
| Local Sync Playback | 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, | |
| 4CH 960P@30fps, 4CH 720P@30fps | ||
| Decode Capability | 4CH 1080P@20fps | |
| Remote Sync Playback | Yes | |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection | |
| Playback Functions | Play, Pause, Stop, Fast Play, Digital Zoom | |
| Backup Mode | USB Device/Network | |
| Network | ||
| Interface | 5 x RJ45 10M/100M Adaptive Ethernet Interface | |
| Incoming Bandwidth | 60MB | |
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, | |
| RTSP, RTCP, P2P | ||
| Onvif Version | Support Onvif 2.4 | |
| Web Browser | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) | |
| CMS Software | Support Windows 7/ Windows 8/Windows 10 | |
| Cloud Support(P2P) | Yes | |
| Smart Phone | iPhone, iPad, Android, Android Pad | |
| PoE | 4 x Independent 100Mbps POE Network Interfaces(Output PowerAT | |
| mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power | ||
| Output ≥ 50W, Support Plug and Play | ||
| Wi-Fi | / | |
| Storage | ||
| Interface Type | 1 SATA Interface | |
| Capacity | Up to 8TB capacity | |
| eSATA | / | |
| General | ||
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, | |
| Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, | ||
| Romanian, Korean, Dutch, Greek | ||
| USB Interface | 2 USB 2.0 Interfaces | |
| RS485 | / | |
| Power Supply | DC 52V/1250mA ≤6W (Without Hard Disk and POE) | |
| Working Environment | -10~55°C/10~90% | |
| Dimension (mm) | 260(W) x 215(D) x 43(H) | |
| Weight (Kg) | 2.0 Kg (Senza HDD) | |
Sistema di videosorveglianza NVR VS-NVRP4C5M-287 - 9CH HD H.265+ 4K
